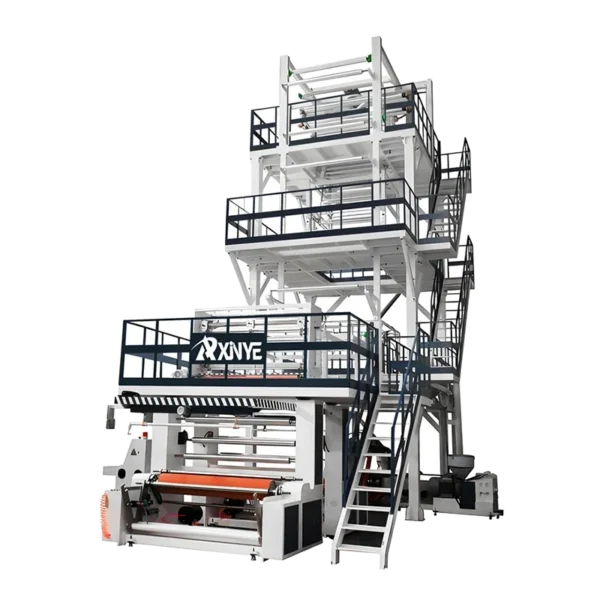

The five to seven layers co-extrusion blown film machine is a specialized equipment designed for the production of packaging materials with gas barrier /liquid properties, such as HDPE, MHDPE, LDPE, LLDPE, MLLDPE, PA and EVOH resins. Its main application scenarios include heavy packaging, high-end food bags, vacuum packaging bags and liquid packaging bags, aiming to provide packaging effects such as aroma retention, freshness preservation, anti-corrosion, airtightness and extended shelf life.
Common Model and Parameters
| Model | SJ-5L-1300 | SJ-5L-1600 | SJ-5L-2200 | SJ-5L-2600 | SJ-5L-3200 |
| R.M | HDPE, MHDPE, LDPE, LLDPE, MLLDPE, PA and EVOH | ||||
| Sleeve Width | 1200mm | 1500mm | 2000mm | 2500mm | 3000mm |
| Thickness | 25-120 Micron , or customize minimum and maximum thickness | ||||
| Capacity | 180-220Kgs/h | 250-300Kgs/h | 320-450Kgs/h | 400-550Kgs/h | 500-700Kgs/h |
| Screw | 50-50-60-50-50mm | 55-55-65-55-55mm | 65-65-85-65-65mm | 75-75-100-75-75mm | 80-80-110-80-80mm |
| Motor/Inverter | 18.5/18.5/30/18.5/18.5Kw | 22/22/37/22/22Kw | 37/37/55/37/37Kw | 45/45/75/45/45Kw | 55/55/90/55/55Kw |
| Gear Box | 146/146/180/146/146 | 173/173/200/173/173 | 180/180/250/180/180 | 200/200/280/200/200 | 225/225/315/225/225 |
| Die Head Dia. | 250mm IBC | 320mm IBC | 500mm IBC | 650mm IBC | 800mm IBC |
| Air Ring | 1200mm | 1400mm | 1800mm | 2200mm | 2600mm |
| Out Cooling Fan | 7.5Kw | 11Kw | 15Kw | 18.5Kw | 22Kw |
| Inner Cooling Fan | 3.7Kw *2 | 5.5Kw * 2 | 7.5Kw *2 | 11Kw *2 | 15Kw * 2 |
| Upper Tower | 350° Haul Off Rotary Design | ||||
| Winder | Automatic double positions friction winders, with automatic tension control system . Centre winder for optional . | ||||
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||||
| Total Power | 250Kw | 280Kw | 400Kw | 510Kw | 650Kw |
| Power Consume | 30% -70% of the total installation Power | ||||
| Installation Size | Custom-made according to your workshop size | ||||
With Auto Loader ,Relax your Labor,most important is that when hopper is empty, it will alarm to rewind you to add raw materials
Adopt 30:1 or 32:1 High Wearing resistance bimetallic Screw,service life will be longer .Different mixing areas can be designed based on different raw materials to achieve the best plasticizing effect.Feeding Zone has water cooling ring to increase capacity .
Use ceramic heating ring to ensure a constant temperature effect.
Adopt 370W Powerfull Aluminum body Fan to cooling the barrel in short time, avoid raw material over heated
Adopt SG (Shuguang) brand hard tooth surface gear box with oil and water cooling,efficient and durable.
Hydraulic screen change system, save time and labor.
Multi-layer(5-7 Layers) co-extrusion planar superimposition die design, combined with IBC internal cooling system.
Cast Aluminum Dual Lips High Speed Air Ring
(Automatic Air Ring for Option)
Two sets inner cooling fan to cool the bubble from inside , one for air in and one for air out.
One set powerful fan to cool the bubble from outside.
Electric Control Aluminum Roller Design bubble Cage , with three ultrasonic sensor to detect film width change
Aluminum roller with electric control system.
350-degree haul-off rotation Design, ensuring the flatness of the winding.
Automatic Double winder with automatic tension control and air shaft ,air or hydraulic unloading system. It can keep a constant tension and save labor.
17 Inch Touch Screen, with PLC to control and monitor complete machine operation.
WEG or Siemens,Permanent magnet motor, China Domestic brand is available
ABB/Delta/Yaskawa/China Domestic brand is available
ABB/FOTEK/Schneider is available
