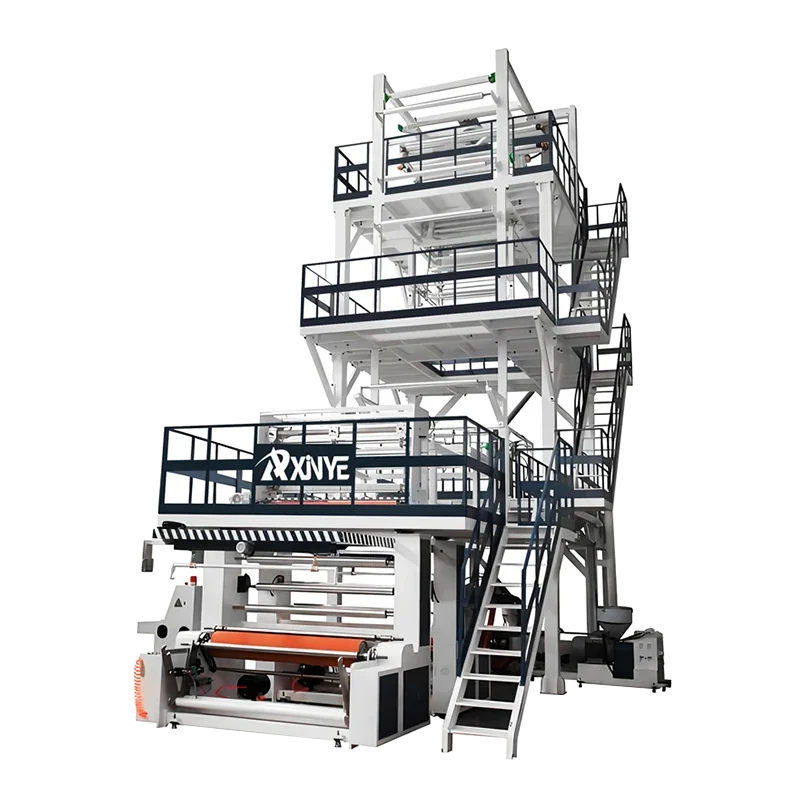

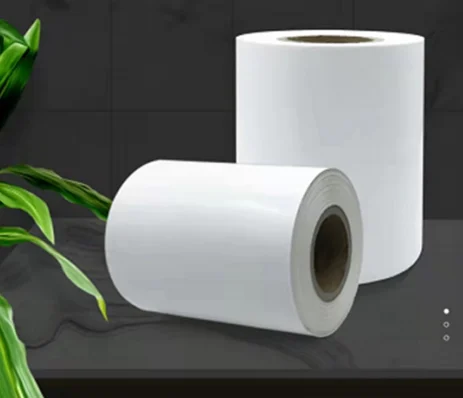

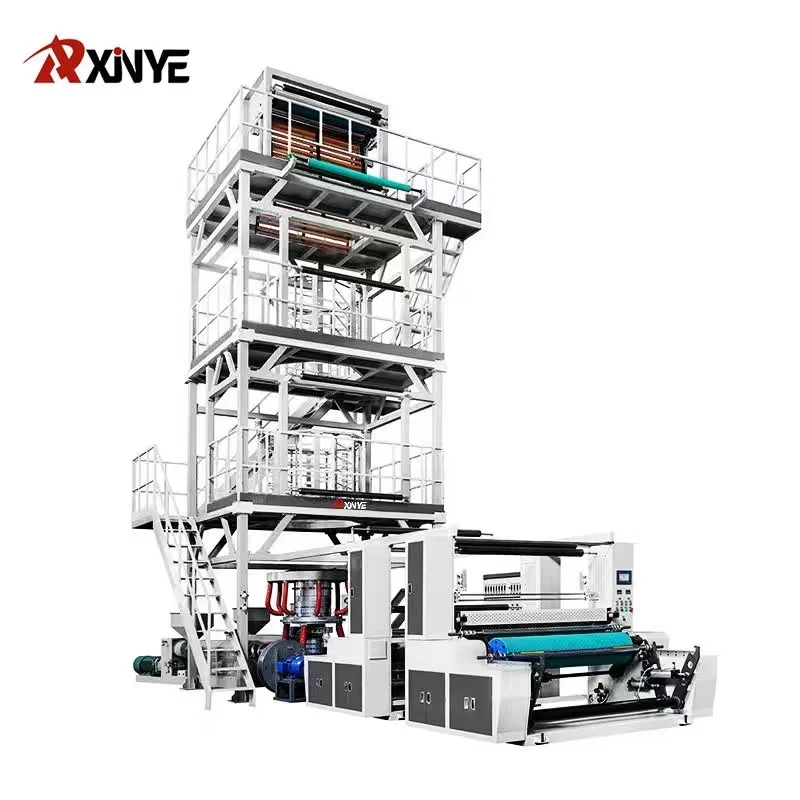

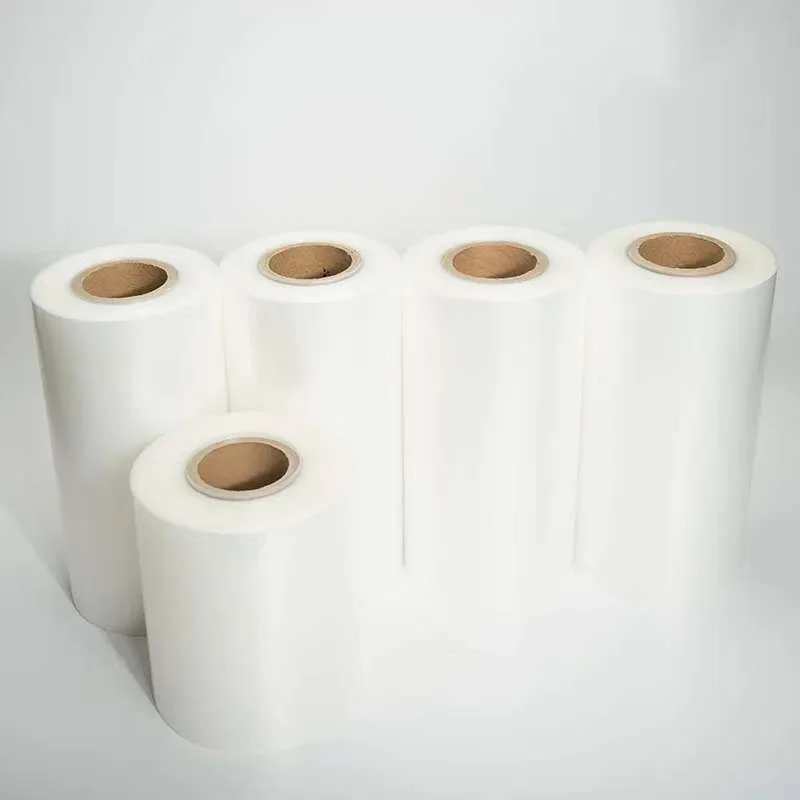

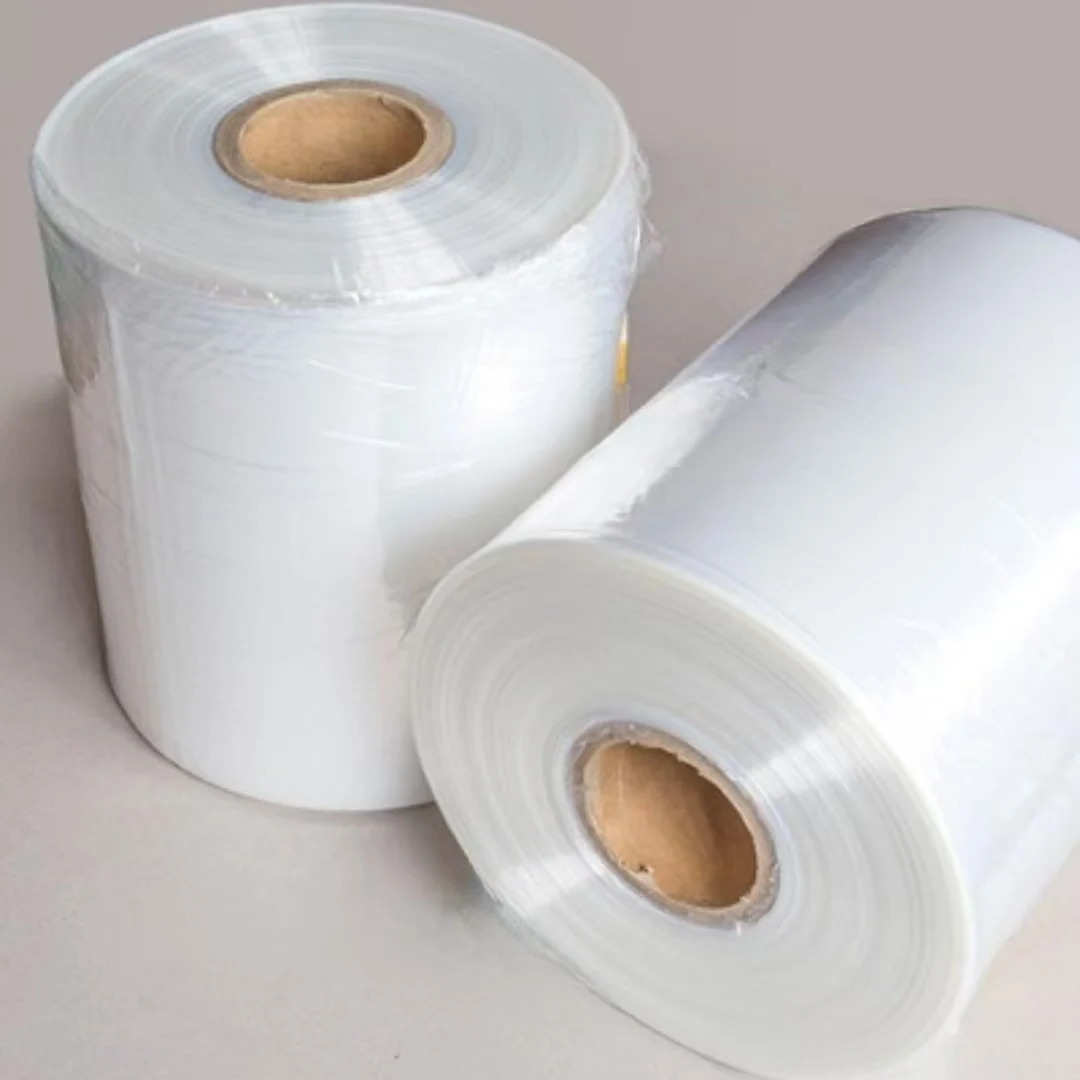

ABC film blowing machine is used to simultaneously extrude three different types of plastic particles. These particles are then compounded through a compounding unit to form a three-layer structure plastic film, which is subsequently blown into a film by this three layers film blowing machine. Its unique advantages is that the plastic films produced have high strength and toughness, and are used for manufacturing composite film substrates, liquid films, shrink films, protective films, cable films, polymer bonding films, multi-functional industrial packaging films, etc., of high-quality plastic packaging films. They can better meet the usage requirements of high-precision, high-speed color printing, compounding, coating products.
Common Model and Parameters 1
| Model | SJ-45-55-45-1100 | SJ-50-60-50-1300 | SJ-55-65-55-1600 |
| Sleeve Width | 1000mm | 1200mm | 1500mm |
| Thickness | 18-120 Micron (Or customize maximum and minimum thickness range) | ||
| Capacity | 60-110Kgs/H | 80-130Kgs/H | 100-160Kgs/H |
| Screw | 45mm *2 ,55mm *1 | 50mm *2 ,60mm *1 | 55mm *2 ,65mm *1 |
| L/D | 30:1 or 32:1 | 30:1 or 32:1 | 30:1 or 32:1 |
| Gear Box | #133 *2 , #146*1 | #146 *2, #173*1 | #173 *2 ,# 180 *1 |
| Main Motor | 11Kw *2 , 15Kw *1 | 15Kw *2 , 22Kw *1 | 18.5Kw *2 , 30Kw *1 |
| HD Die Head | 100mm | 120mm | 150mm |
| LD Die Head | 220mm | 280mm | 350mm |
| Air Ring | Dual Lip 1000mm | Dual Lip 1000mm | Dual Lip 1200mm |

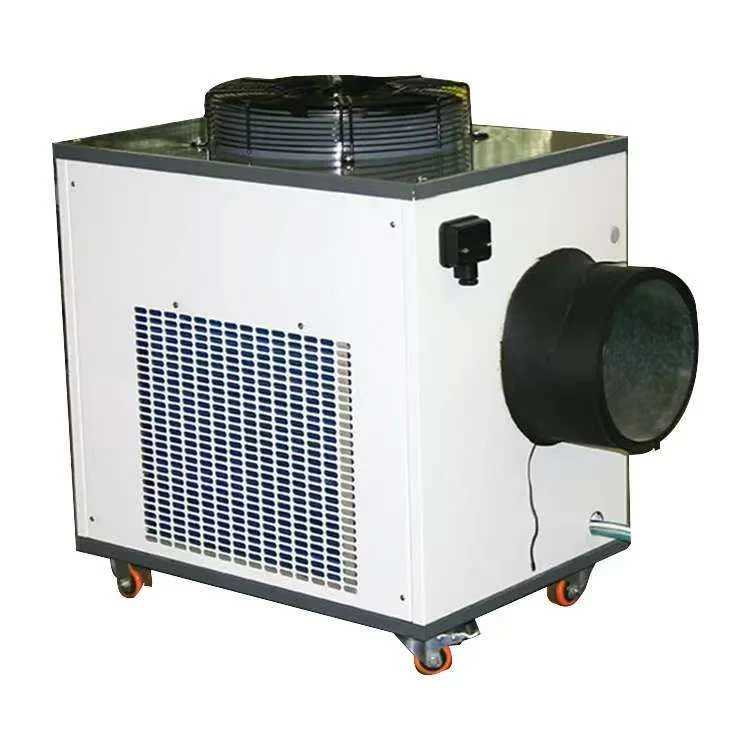

| Air Chiller | 5.5 Kw | 7.5 Kw | 11 Kw |
| Winder | Custom-made , can be single or double or special design | ||
| Power Supply | 3 Phase ,4 lines ,220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Total Power | 90Kw | 110Kw | 140Kw |
| Power Consume | 30% -70% of the total installation Power | ||
| Install Size | Custom-made according to your workshop size | ||
Common Model and Parameters 2
| Model | SJ–60-80-60-2200 | SJ-75-90-75-2600 | SJ-90-110-90-3200 |
| Sleeve Width | 2000mm | 2500mm | 3000mm |
| Thickness | 18-120 Micron (Or customize maximum and minimum thickness range) | ||
| Capacity | 160-230Kgs/H | 200-300Kgs/H | 280-360Kgs/H |
| Screw | 60mm *2, 80mm *1 | 75mm *2 , 90mm *1 | 90mm *2 ,110mm * 1 |
| L/D | 30:1 or 32:1 | 30:1 or 32:1 | 30:1 or 32:1 |
| Gear Box | #173 *2 , # 200 *1 | #180 *2 , #225*1 | #225 *2 ，#280*1 |
| Main Motor | 22Kw *2，37Kw *1 | 30Kw *2 , 55Kw*1 | 55Kw *2 , 90Kw *1 |
| HD Die Head | 250mm | 300mm | 400mm |
| LD Die Head | 550mm | 650mm | 800mm |
| Air Ring | Dual Lip 1400mm | Dual Lip 1800mm | Dual Lip 2200mm |
| Air Chiller | 15 Kw | 18.5 Kw | 22 Kw |
| Winder | Custom-made , can be single or double or special design | ||
| Power Supply | 3 Phase ,4 lines ,220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Total Power | 170Kw | 220Kw | 300Kw |
| Power Consume | 30% -70% of the total installation Power | ||
| Install Size | Custom-made according to your workshop size | ||

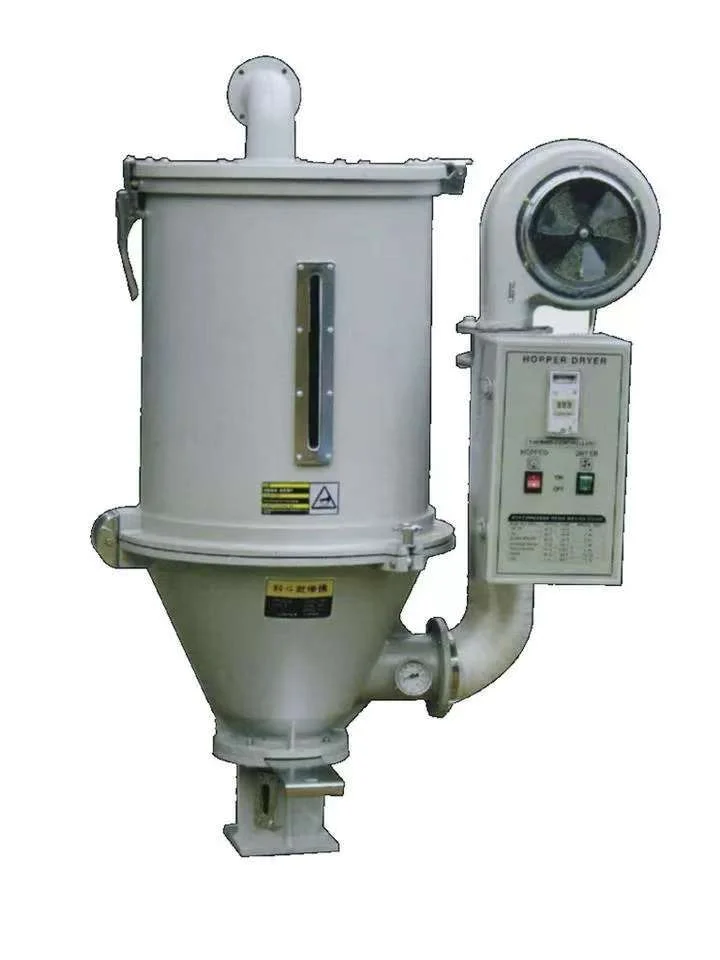

With Auto Loader ,Relax your Labor,most important is that when hopper is empty, it will alarm to rewind you to add raw materials
Adopt 30:1 or 32:1 High Wearing resistance bimetallic Screw,service life will be longer .Different mixing areas can be designed based on different raw materials to achieve the best plasticizing effect.Feeding Zone has water cooling ring to increase capacity .
Use ceramic heating ring to ensure a constant temperature effect.
Adopt 370/550/750W Powerfull Aluminum body Fan to cooling the barrel in short time, avoid raw material over heated
Adopt SG (Shuguang) brand hard tooth surface gear box with oil and water cooling,efficient and durable.
Manual Fast Screen Change Design.
Cheap and Save time.
Take-apart screen change or Hydraulic screen change for your option

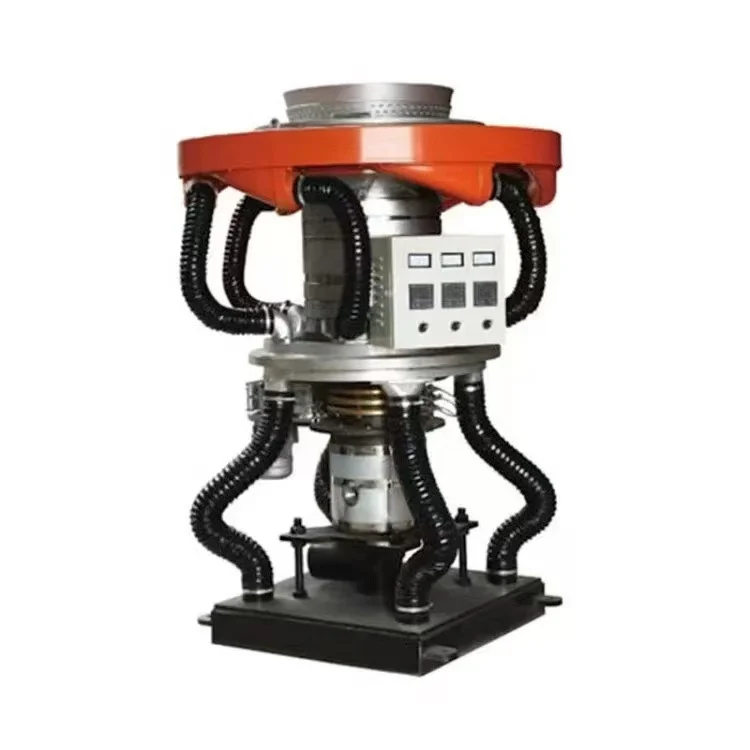

40Cr Die block steel ABC three layers Spiral Die head ,The elongated and thickened body ensures excellent temperature stability and high capacity. 360-degree rotation can ensure uniform thickness of the film and neat winding.
Cast Aluminum Dual Lips High Speed HDPE /LDPE Air Ring for your option.
Electric Control Aluminum Roller Design bubble Cage . But for HDPE film, wooden design will be better.
Aluminum roller or Wooden plate design for your option according to film kinds.
Gusset board is available
Normally its four rollers design, two rubber roller, one mirror roller and one dot roller. Dot roller can be canceled if no need.

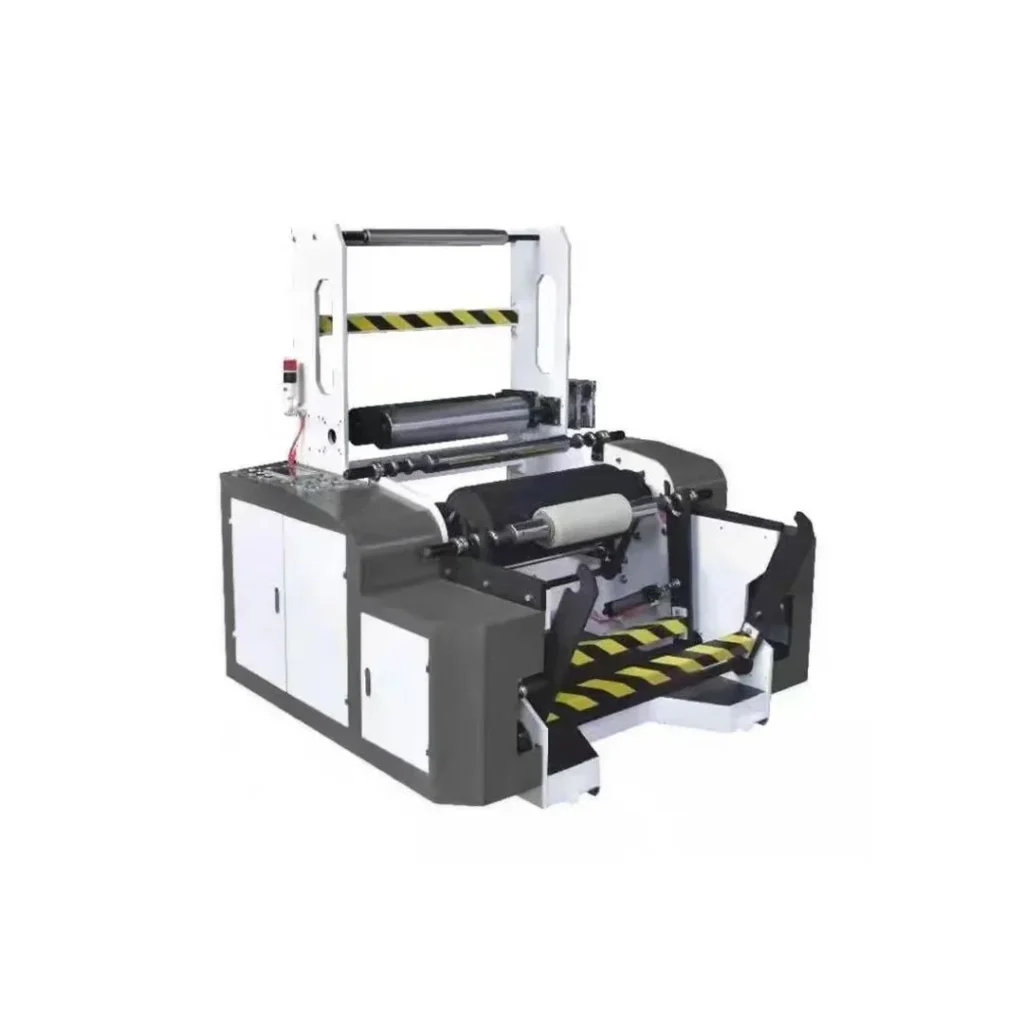

Automatic single/Double winder with automatic tension control and air shaft ,air or hydraulic unloading system. It can keep a constant tension and save labor.

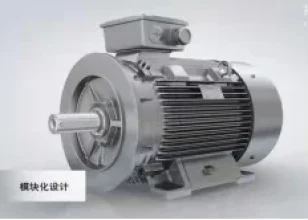

WEG or Siemens,Permanent magnet motor, China Domestic brand is available.
Silent high-pressure fan, controlled by frequency converter. It can adjust the motor speed as needed, being highly efficient, energy-saving and quiet.

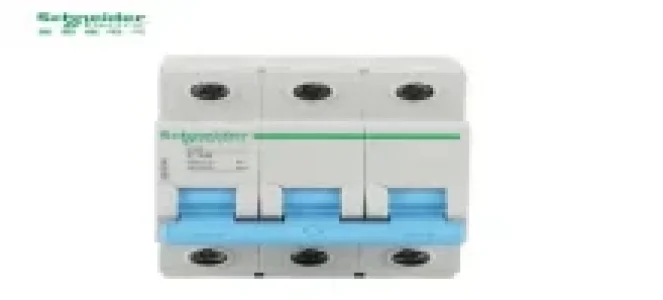

ABB/Delta/Yaskawa/China Domestic brand is available.
Temperature Controller

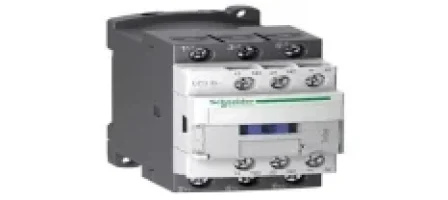

ABB/FOTEK/Schneider is available
