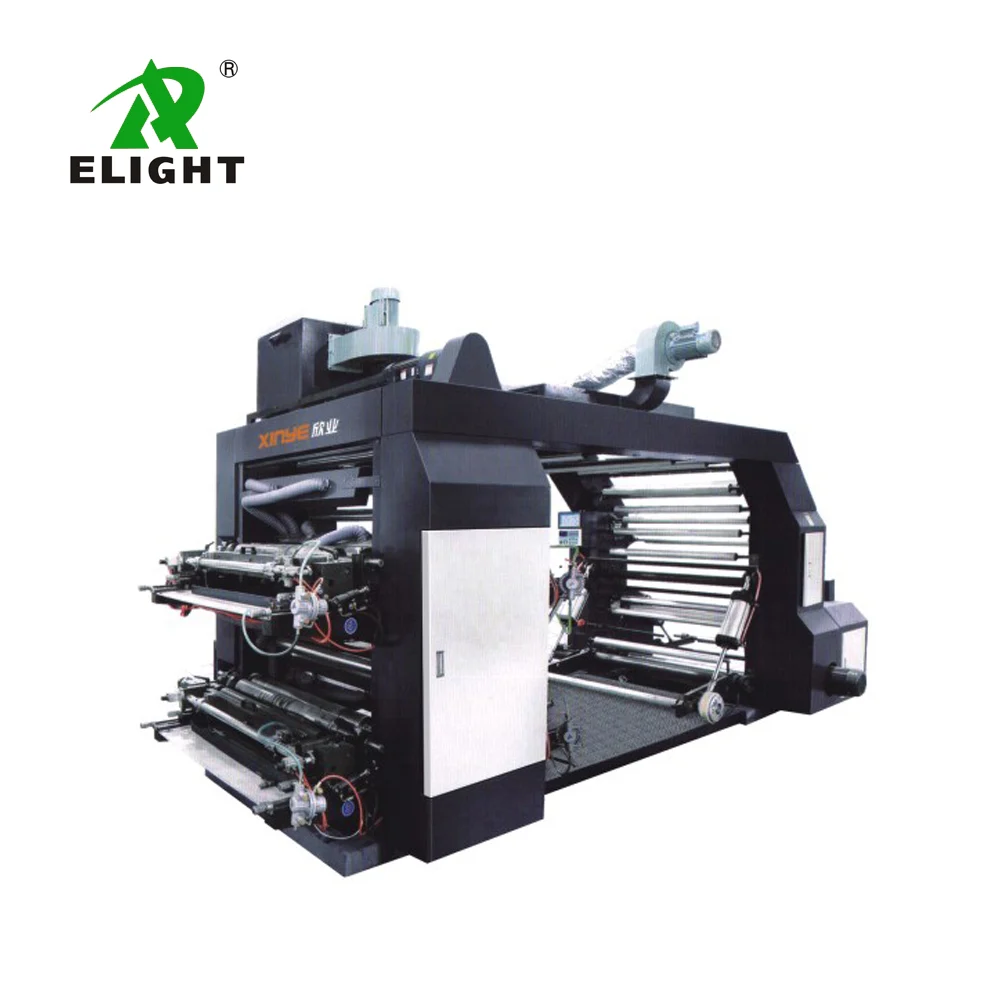

This is an economical Four color flexo printing machine, serving as an accessory for film blowing machines and bag-making machines . It is suitable for printing simple patterns or text. Its main advantages are low price and simple operation.
Common Model And Parameter 1
| Model | YT-4600 | YT-4800 | YT-41000 |
| Unwinding Width | 600mm | 800mm | 1000mm |
| Maximum Printing Width | 560mm | 760mm | 960mm |
| Printing Length | 200-1000mm | ||
| Suitable For | PE / PP / BOPP /OPP/ PVC Film Etc. | ||
| Number of Color | 4+0 or 1+3 or 2+2 | ||
| Printing Speed | 60M/Min | ||
| Drive Method | Straight Gear | ||
| Anilox Roller | Metal Anilox Roller 4 Pcs. LPI Custom-made | ||
| Plate Thickness | 1.7mm or 2.28mm or Custom-made | ||
| Adhesive Tape Thickness | 0.38mm or 0.5mm or Custom-made | ||
| Color Register | Manually | ||
| Power Source | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
Common Model And Parameter 2
| Model | YTB-2400 | YTB-4800 | YTB-41000 |
| Unwinding Width | 600mm | 800mm | 1000mm |
| Maximum Printing Width | 560mm | 760mm | 960mm |
| Printing Length | 200-1000mm | ||
| Suitable For | PE / PP / BOPP /OPP/ PVC Film Etc. | ||
| Number of Color | 4+0 or 1+3 or 2+2 | ||
| Printing Speed | 80M/Min | ||
| Drive Method | Helical Gear | ||
| Anilox Roller | Ceramic Anilox Roller 4 Pcs. LPI Custom-made | ||
| Doctor Blade | 4 Sets | ||
| Plate Thickness | 1.7mm or 2.28mm or Custom-made | ||
| Adhesive Tape Thickness | 0.38mm or 0.5mm or Custom-made | ||
| Color Register | Manually | ||
| Power Source | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
Common Model And Parameter 3
| Model | YTA-4600 | YTA-4800 | YTA-41000 |
| Unwinding Width | 600mm | 800mm | 1000mm |
| Maximum Printing Width | 560mm | 760mm | 960mm |
| Printing Length | 200-1000mm | ||
| Suitable For | PE / PP / BOPP /OPP/ PVC Film Etc. | ||
| Number of Color | 4+0 or 1+3 or 2+2 | ||
| Printing Speed | 100M/Min | ||
| Drive Method | Helical Gear + Timing Belt | ||
| Anilox Roller | Ceramic Anilox Roller 4 Pcs. LPI Custom-made | ||
| Doctor Blade | 4 Sets | ||
| Plate Thickness | 1.7mm or 2.28mm or Custom-made | ||
| Adhesive Tape Thickness | 0.38mm or 0.5mm or Custom-made | ||
| Color Register | Manually | ||
| Power Source | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
