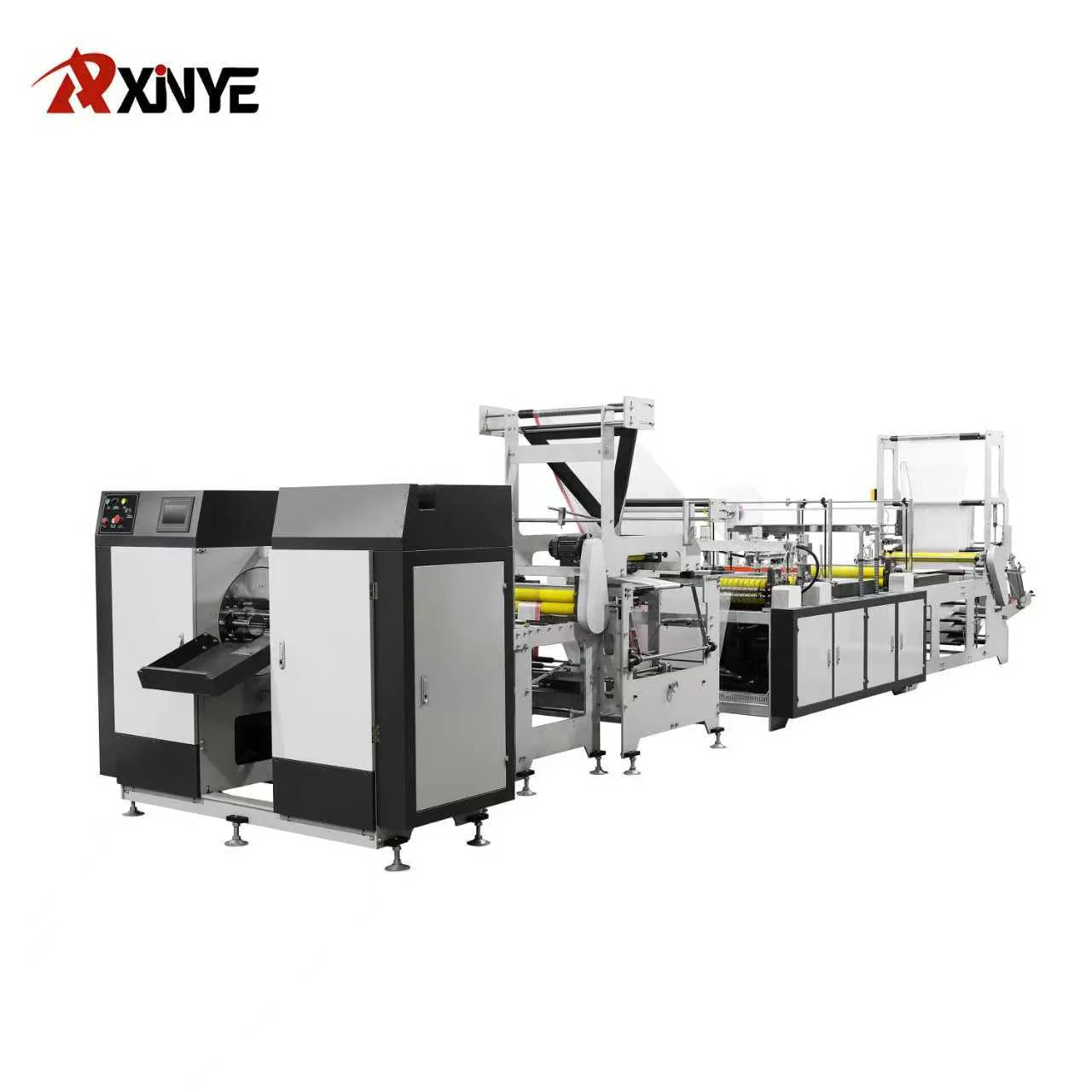

Full Automatic C or Z fold Roll Bag Making Machine-Coreless Design

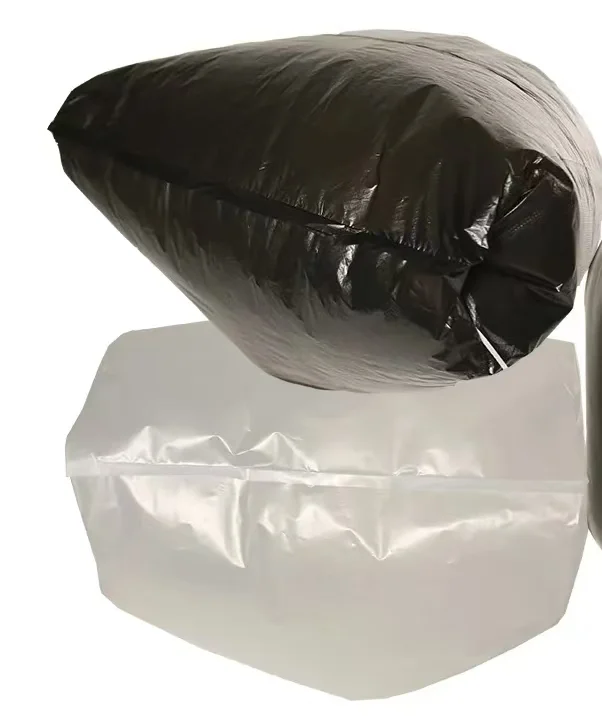

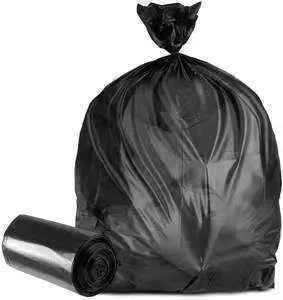

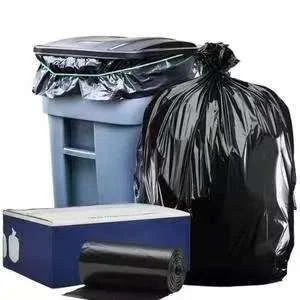

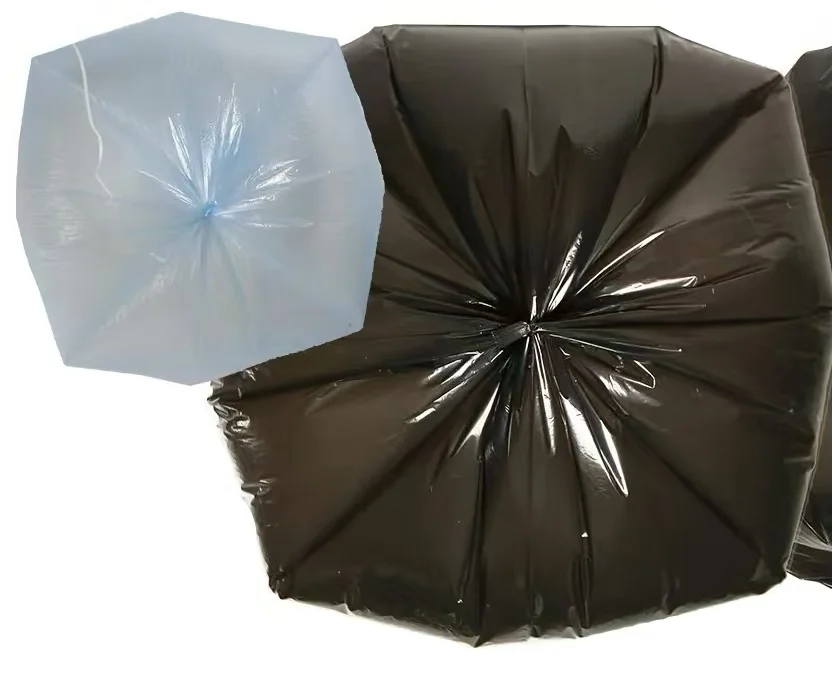

This is a full automatic coreless roll bag making machine. The finished product is a C or Z fold bag in rolls. Comparing with start sealing bag ( fold up first then sealing), C-fold bag is sealing first then fold up. So C-fold bag , its top and bottom are same sizes . It always used to produce household garbage bag, or heavy duty public trash collection bags .
Common Model and Parameters
| Model | XYC-800 | XYC-1000 | XYC-1200 |
| Bag Type | C or Z Fold Flat Bag In Rolls | ||
| Bag Width Range | 200-600mm | 200-800mm | 200-1000mm |
| Bag Length Range | 200-1200mm | ||
| Max.Unwinding Diameter | 1000mm | ||
| Max. Winding Diameter | 300mm | ||
| Film Thickness Range | 8-100Micron | ||
| Speed | 120 Meters /min | ||
| Unwinding Device | Single | ||
| Rewinding Device | Single | ||
| Fold Up Device | Double | ||
| Roll Change | Automatic | ||
| Servo Motor | 2.0Kw | 3.0 Kw | 3.8Kw |
| Main Motor | 1.5Kw | 1.5Kw | 2.2Kw |
| Photo-cell | 1 | 1 | 1 |
| EPC ( Web Guide) | 1 | 1 | 1 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Air Supply | 7Kg/cm2, 700Ni/min | ||
| Total Power | 12Kw | 13Kw | 15Kw |
| Installation Size | 8.0X 1.6 X 1.7 M | 8.0 X 1.7 X 1.7 M | 8.0 X 1.8X 1.7 M |
| Labeling Function | Optional | ||
