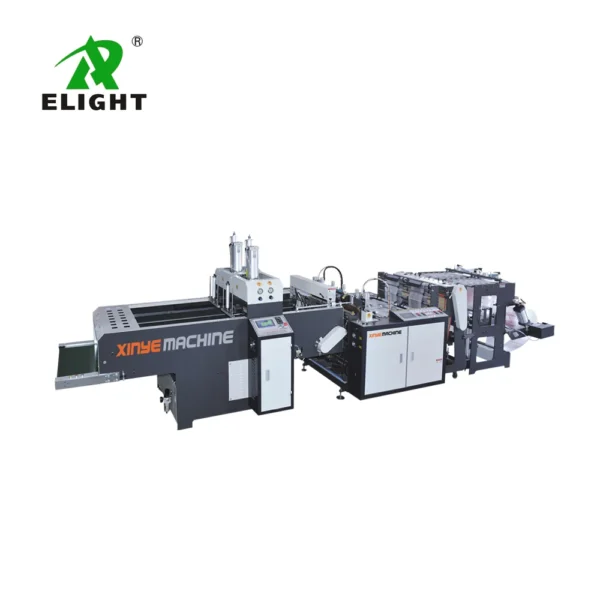

This is a fully automatic dual-channel, ultra-high-speed hot sealing hot cutting T-shirt bag making machine for making W/U shape carry bags or grocery bags. With dual servo and dual printing mark tracking design, it has a unique advantage in the field of producing bags with printed patterns. Whether it’s a blank bag or a printed bag, its maximum speed can reach 800 per minute, significantly improving production efficiency.
Common Model and Parameters 1
| Model | XYC-400X2 | XYC-450X2 | XYC-500X2 |
| Bag Width Range | 100-360mm | 100-410mm | 100-450mm |
| Bag Length Range | 300-660mm | 300-680mm | 300-750mm |
| Film Thickness Range | 8-35 Micron | ||
| Speed | 200-400 Pieces / min * 2 lines | ||
| Servo Motor | 3.8Kw * 2 | 4.5Kw *2 | 5.0Kw *2 |
| Main Motor | 2.2Kw | 2.2Kw | 2.2Kw |
| Photo-cell | 2 | 2 | 2 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Air Supply | 7Kg/cm2, 700Ni/min | ||
| Total Power | 11Kw | 15Kw | 18.5Kw |
| Installation Size | 7.0 X 1.6 X 1.7 M | 7.0 X 1.7 X 1.7 M | 7.0 X 1.8X 1.7 M |
