This is a fully automatic multi-functional side sealing plastic bag making machine. It is used for manufacturing common D-cut bags, patch bags, handbags, and rope bags which suitable for use in supermarkets or clothing shopping bags. The operation is simple, the automation level is high, and the product range is extensive. It is a highly popular device.
Common Model and Parameters
| Model | XY-800ZD | XY-1000ZD |
| Possible Products | Side Sealing Plastic D-cut Bag, Patch Bag, Loop Handle Bag, Rope Bag | |
| Bag Width Range | 250-600mm | 250-650mm |
| Bag Length(Height) | 200-600mm | 250-850mm |
| Film Thickness | 45-100 Micron | |
|
Speed |

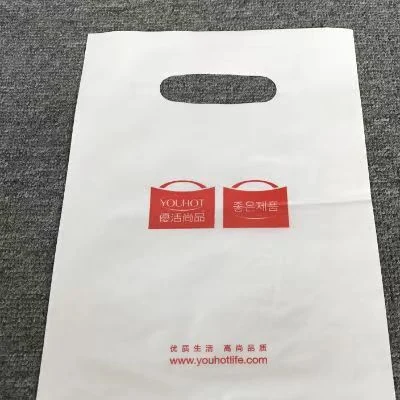

D-cut Bag : 40-120 Pcs/min | |
| Patch Bag : 40-80 Pcs/min | ||

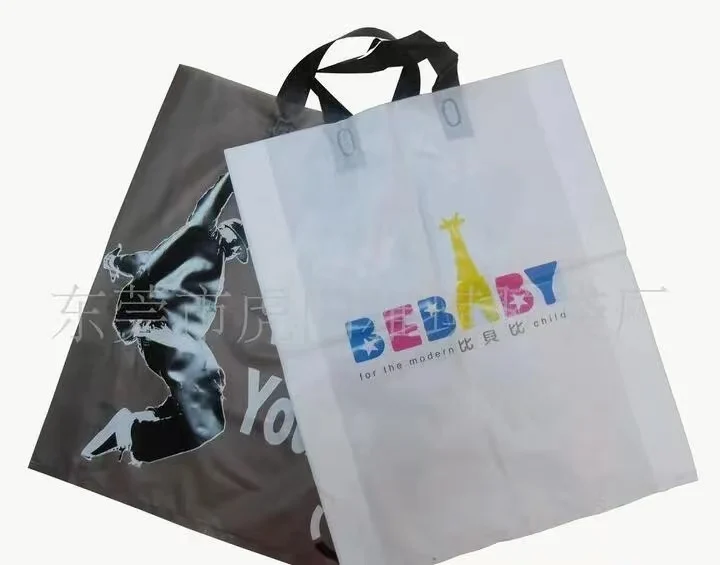

| Loop Handel Bag : 40-80 Pcs/min | ||

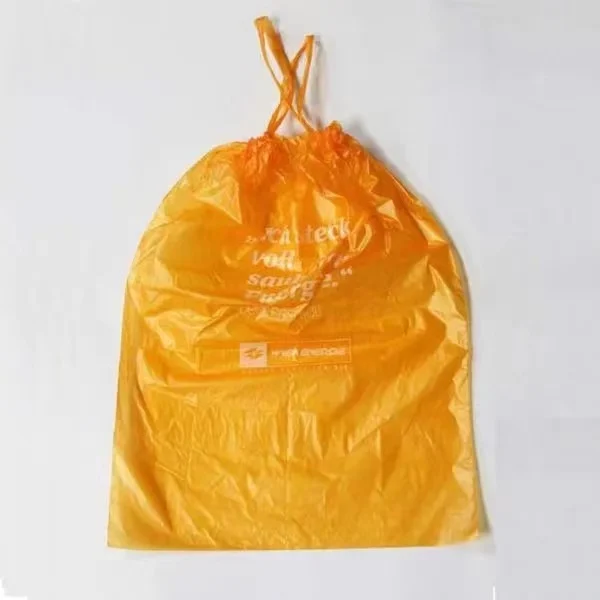

| Rope Bag : 40-80 Pcs/min | ||
| Reinforcement Device | On Bag Top and Bottom | |
| Power Source | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | |
| Air Supply | 7Kg/cm2, 700Ni/min | |
| Power Consume | 8Kw | 10.5Kw |
| Installation Size | 8.5 X 2.8 X 1.95 M | 9.0 X 3.1 X 1.95 M |
