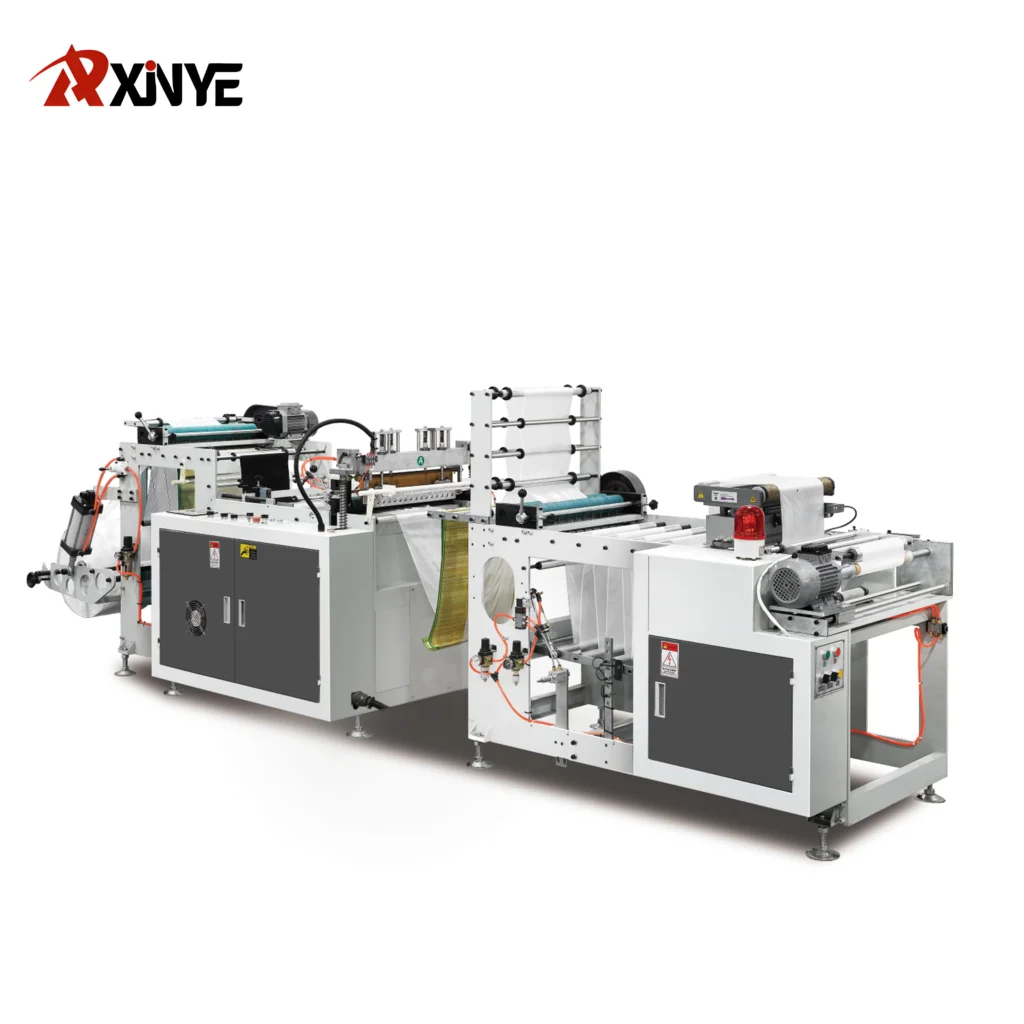

This is a fully automatic single line with paper core roll bag making machine , designed for manufacturing supermarket retail bags or household freezer bags . Its main advantages are high speed, full automatic. The computerized length setting, touchscreen operation make it easy to use. EPC devices ensure a smooth rewinding. It is not suitable for producing coreless roll bags.
Common Model and Parameters
| Model | XYWX-500 | XYWX-600 | XYWX-700 |
| Bag Type | Flag Bag In Rolls With Paper or Plastic Tube | ||
| Bag Width Range | 80-400mm | 80-500mm | 80-600mm |
| Bag Length Range | 200-800mm | ||
| Max.Unwinding Diameter | |||
| Max. Winding Diameter | 180mm | ||
| Film Thickness Range | 5-25 Micron ( Per Layer, total 4 or 8 Layers) | ||
| Speed | 80-200Pieces / min | ||
| Unwinding Device | Single | ||
| Rewinding Device | Single | ||
| Roll Change | Automatic | ||
| Servo Motor | 1.5Kw | 1.8 Kw | 2.0Kw |
| Main Motor | 1.5Kw | 1.5Kw | 2.2Kw |
| Photo-cell | 1 | 1 | 1 |
| EPC ( Web Guide) | 1 | 1 | 1 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Air Supply | 7Kg/cm2, 700Ni/min | ||
| Total Power | 5Kw | 7Kw | 9Kw |
| Installation Size | 7.5 X 1.6 X 1.7 M | 7.5 X 1.7 X 1.7 M | 7.5 X 1.8X 1.7 M |
| Fold Up Device | Optional | ||
| Labeling Function | Optional | ||
