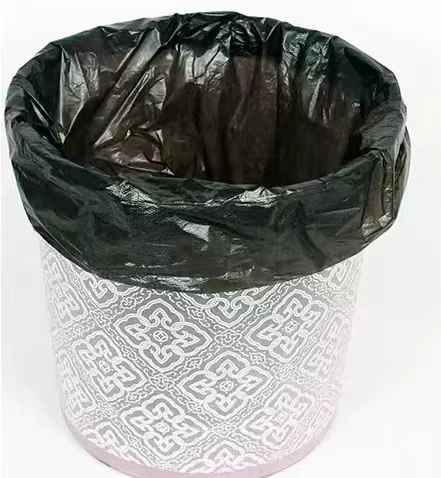

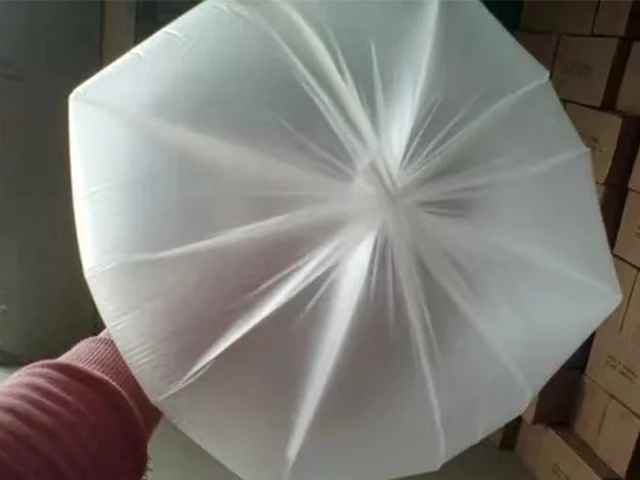

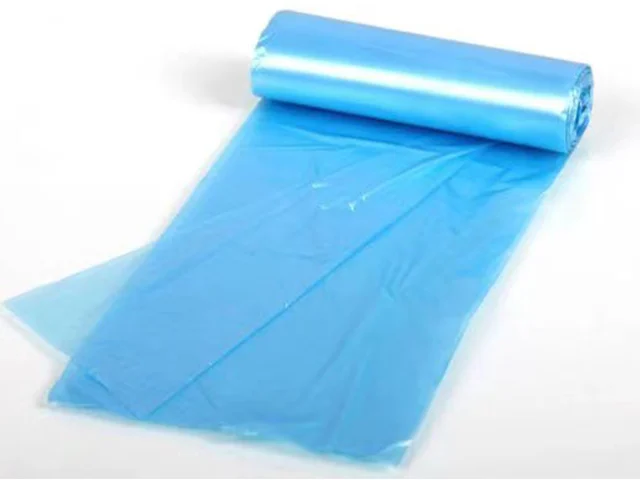

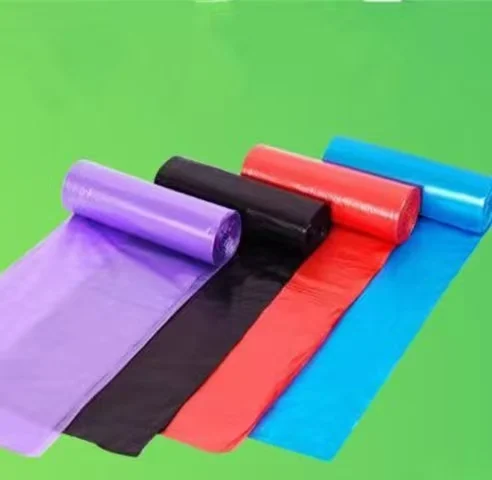

This is a fully automatic double line coreless roll bag-making machine (Star sealing), designed for manufacturing indoor or household garbage bags (light duty). Its main advantages are high speed, full automatic, double feeding, and double rewinding, allowing for the processing of two bags simultaneously (blank bags and printed bags). The computerized length setting, touchscreen operation make it easy to use. Two EPC devices ensure a smooth rewinding. It is not suitable for producing roll bags with paper/or plastic tube.
| Model | XYWX-300X2 | XYWX-400X2 | XYWX-450X2 |
| Bag Type | Coreless Star Sealing Flag Bag In Rolls | ||
| Bag Width Range | 80-150mm (Open 320-600mm) | 80-200mm (Open 320-800mm) | 80-250mm (Open 320-1000mm) |
| Bag Length Range | 200-1200mm | ||
| Film Thickness Range | 5-25 Micron ( Per Layer, total 4 or 8 Layers) | ||
| Speed | 80-150Pieces / min * 2 lines | ||
| Unwinding Device | Double | ||
| Rewinding Device | Double | ||
| Roll Change | Automatic | ||
| Servo Motor | 1.5Kw *2 | 1.8 Kw *2 | 2.0Kw *2 |
| Main Motor | 1.5Kw | 1.5Kw | 2.2Kw |
| Photo-cell | 2 | 2 | 2 |
| EPC ( Web Guide) | 2 | 2 | 2 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Air Supply | 7Kg/cm2, 700Ni/min | ||
| Total Power | 8Kw | 10Kw | 12Kw |
| Installation Size | 6.8X 1.6 X 1.7 M | 6.8X 1.7 X 1.7 M | 6.8 X 1.8X 1.7 M |
| Fold Up Device | Optional | ||
| Labeling Function | Optional | ||
