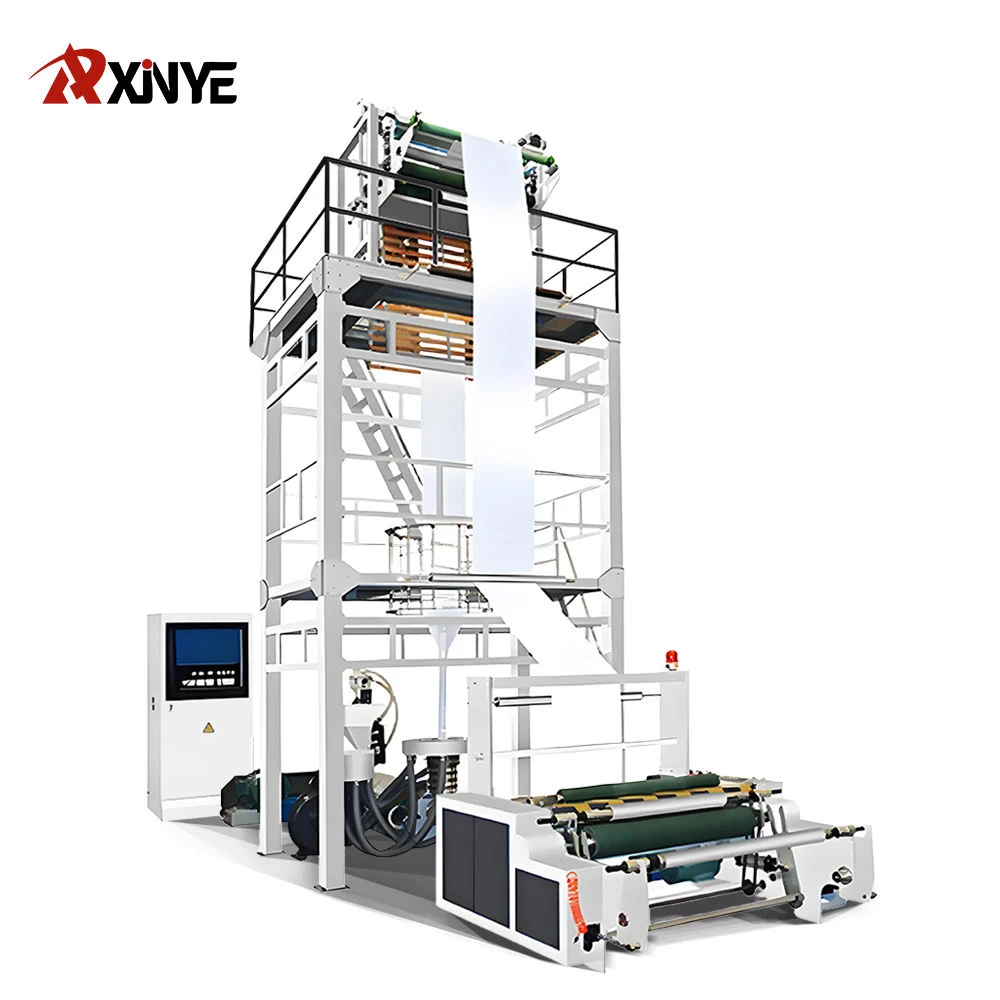

This is a high speed single screw design blown film machine, suitable for producing HDPE/LDPE/LLDPE ordinary soft packaging films. It is used for making supermarket shopping bags, inner liner films, or non-functional crop covering films. Its main advantages are easy operation, low price, and durability. It is highly favored by first-time entrepreneurs .
Common Model and Parameters (700-1300mm)
| Model | SJ-50-700 | SJ-55-900 | SJ-60-1100 | SJ-65-1300 |
| Sleeve Width | 600mm | 800mm | 1000mm | 1200mm |
| Thickness | 6-120 Micron | 6-120 Micron | 6-120 Micron | 6-120 Micron |
| Capacity | 40-70Kgs/H | 60-100Kgs/H | 80-120Kgs/H | 100-140Kgs/H |
| Screw | 50mm | 55mm | 60mm | 65mm |
| L/D | 30:1 or 32:1 | 30:1 or 32:1 | 30:1 or 32:1 | 30:1 or 32:1 |
| Gear Box | #173 | #180 | #200 | #225 |
| Main Motor | 22Kw | 30Kw | 37Kw | 45Kw |
| HD Die Head | 60mm | 80mm | 100mm | 120mm |
| LD Die Head | 120mm | 160mm | 220mm | 250mm |
| Air Ring | Dual Lip 720mm | Dual Lip 780mm | Dual Lip 830mm | Dual Lip 1000mm |
| Air Chiller | 4.0 Kw | 5.5 Kw | 7.5 Kw | 7.5Kw |
| Winder | Custom-made , can be single or double or special design | |||
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | |||
| Total Power | 60Kw | 70Kw | 82Kw | 90Kw |
| Power Consume | 30% -70% of the total installation Power | |||
| Install Size | Custom-made according to your workshop size | |||
Common Model and Parameters (1600-3200mm)
| Model | SJ-80-1600 | SJ-100-2200 | SJ-110-2700 | SJ-120-3200 |
| Sleeve Width | 1500mm | 2000mm | 2500mm | 3000mm |
| Thickness | 6-100 Micron | 6-100 Micron | 6-100 Micron | 6-100 Micron |
| Capacity | 100-160Kgs/H | 120-220Kgs/H | 180-260Kgs/H | 220-300Kgs/H |
| Screw | 80mm | 100mm | 110mm | 120mm |
| L/D | 30:1 or 32:1 | 30:1 or 32:1 | 30:1 or 32:1 | 30:1 or 32:1 |
| Gear Box | #250 | #280 | #315 | #330 |
| Main Motor | 55Kw | 90Kw | 110Kw | 132Kw |
| HD Die Head | 180mm | 220mm | 300mm | 450mm |
| LD Die Head | 350mm | 500mm | 650mm | 800mm |
| Air Ring | Dual Lip 1200mm | Dual Lip 1400mm | Dual Lip 1800mm | Dual Lip 2200mm |
| Air Chiller | 11 Kw | 15 Kw | 18.5 Kw | 22Kw |
| Winder | Custom-made , can be single or double or special design | |||
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | |||
| Total Power | 120Kw | 160Kw | 210Kw | 280Kw |
| Power Consume | 30% -70% of the total installation Power | |||
| Install Size | Custom-made according to your workshop size | |||
With Auto Loader ,Relax your Labor,most important is that when hopper is empty, it will alarm to rewind you to add raw materials
Adopt 30:1 or 32:1 High Wearing resistance bimetallic Screw,service life will be longer .Different mixing areas can be designed based on different raw materials to achieve the best plasticizing effect.Feeding Zone has water cooling ring to increase capacity .
Use ceramic heating ring to ensure a constant temperature effect.
Adopt 370W Powerfull Aluminum body Fan to cooling the barrel in short time, avoid raw material over heated
Adopt SG (Shuguang) brand hard tooth surface gear box with oil and water cooling,efficient and durable.
Manual Take-apart screen change
40Cr Die block steel ABA three layers Spiral Die head ,The elongated and thickened body ensures excellent temperature stability and high capacity.
Cast Aluminum Dual Lips High Speed HDPE /LDPE Air Ring for your option
Manual adjust Aluminum Roller Design bubble Cage . But for HDPE film, wooden design will be better.
Wooden plate with gusset board

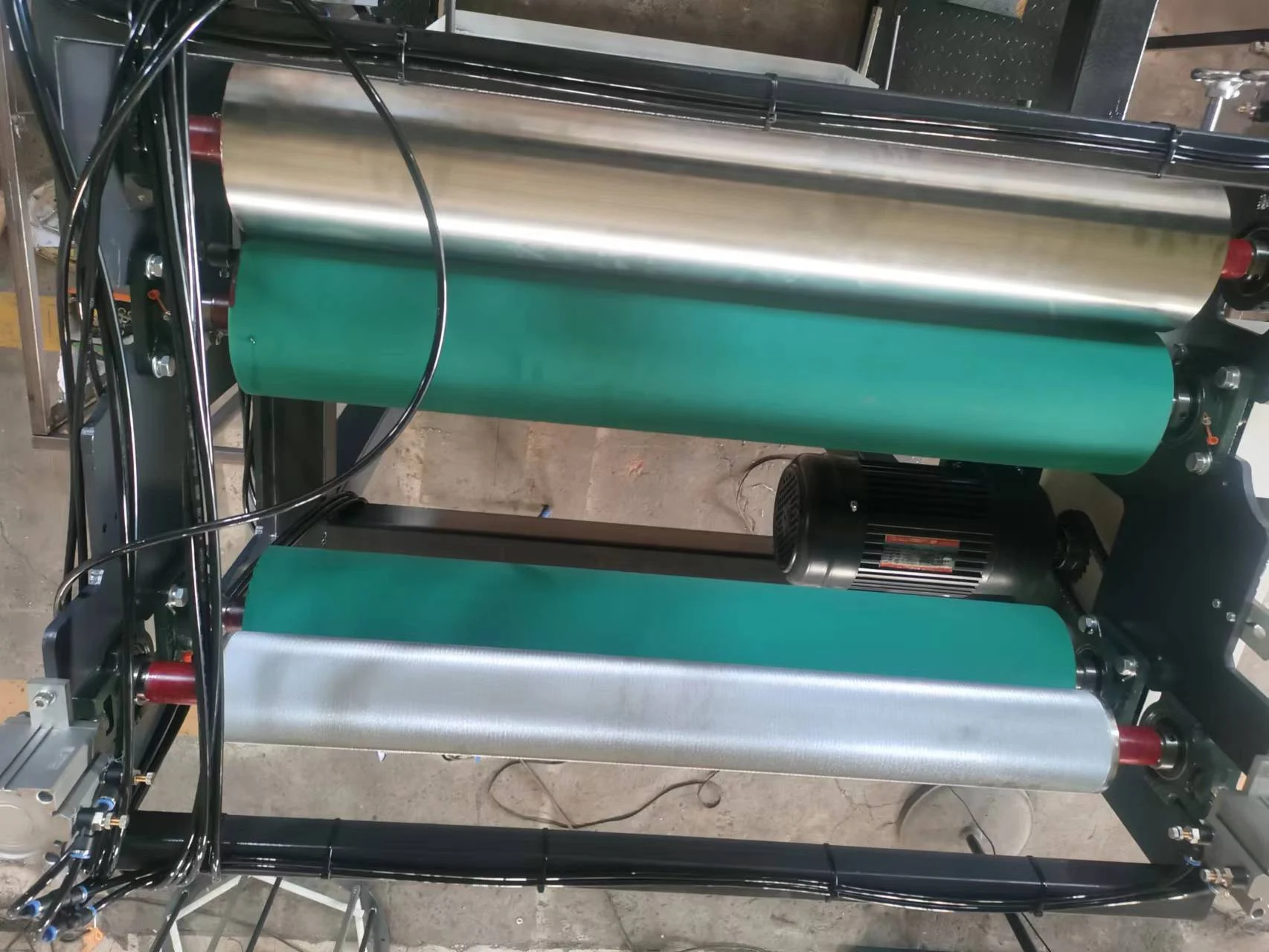

Normally its three rollers design, one rubber roller, one mirror roller and one dot roller. Dot roller can be canceled if no need.

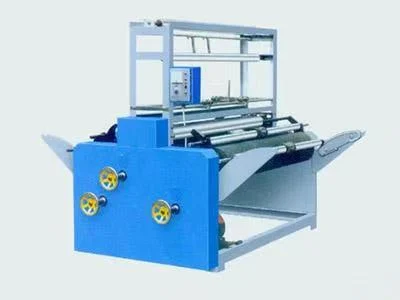

Automatic single winder,with vector inverter to control tension, with air shaft and meter counter, automatic rolls change.
WEG or Siemens,Permanent magnet motor, China Domestic brand is available.
Silent high-pressure fan, controlled by frequency converter. It can adjust the motor speed as needed, being highly efficient, energy-saving and quiet.
ABB/Delta/Yaskawa/China Domestic brand is available.
Temperature Controller
ABB/FOTEK/Schneider is available
