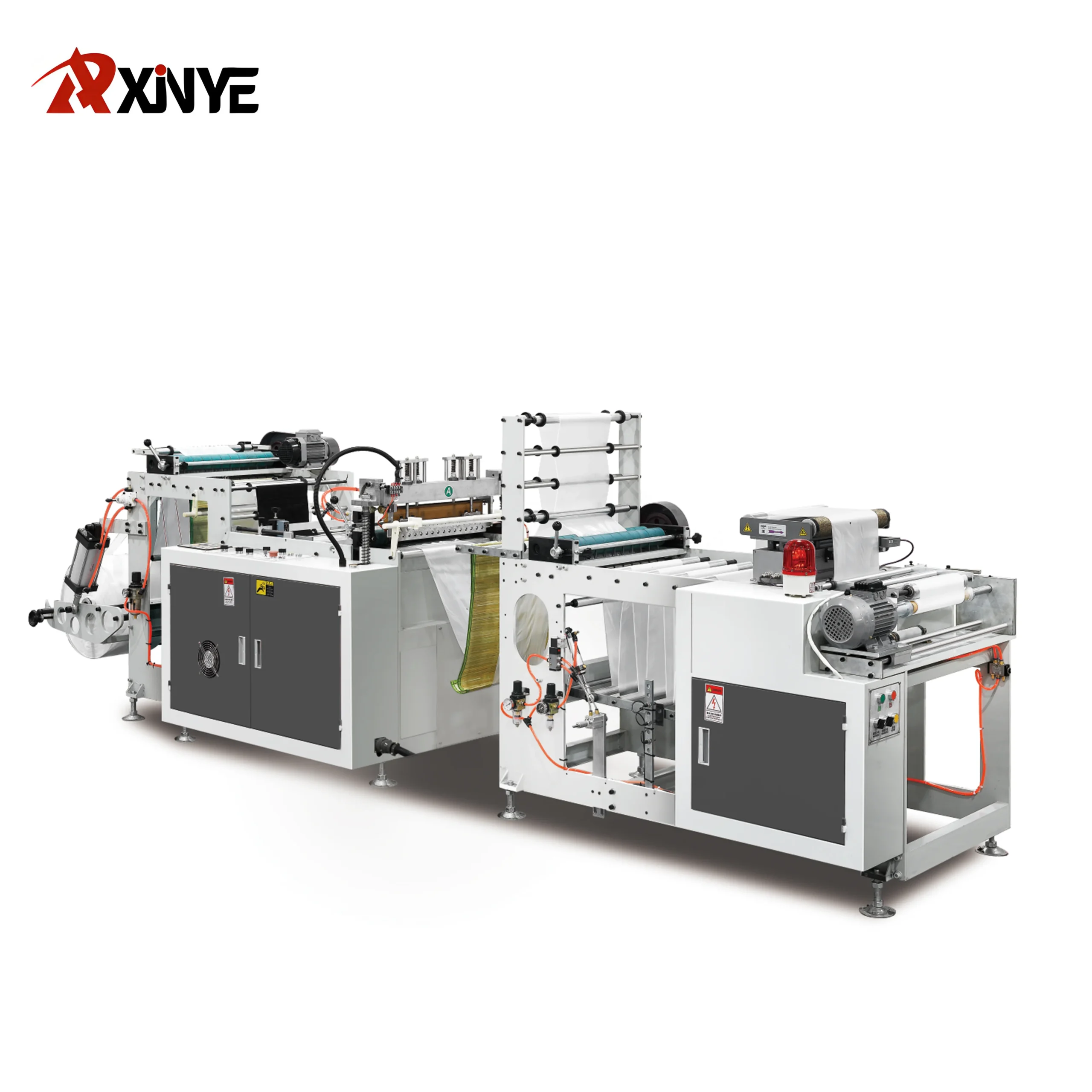

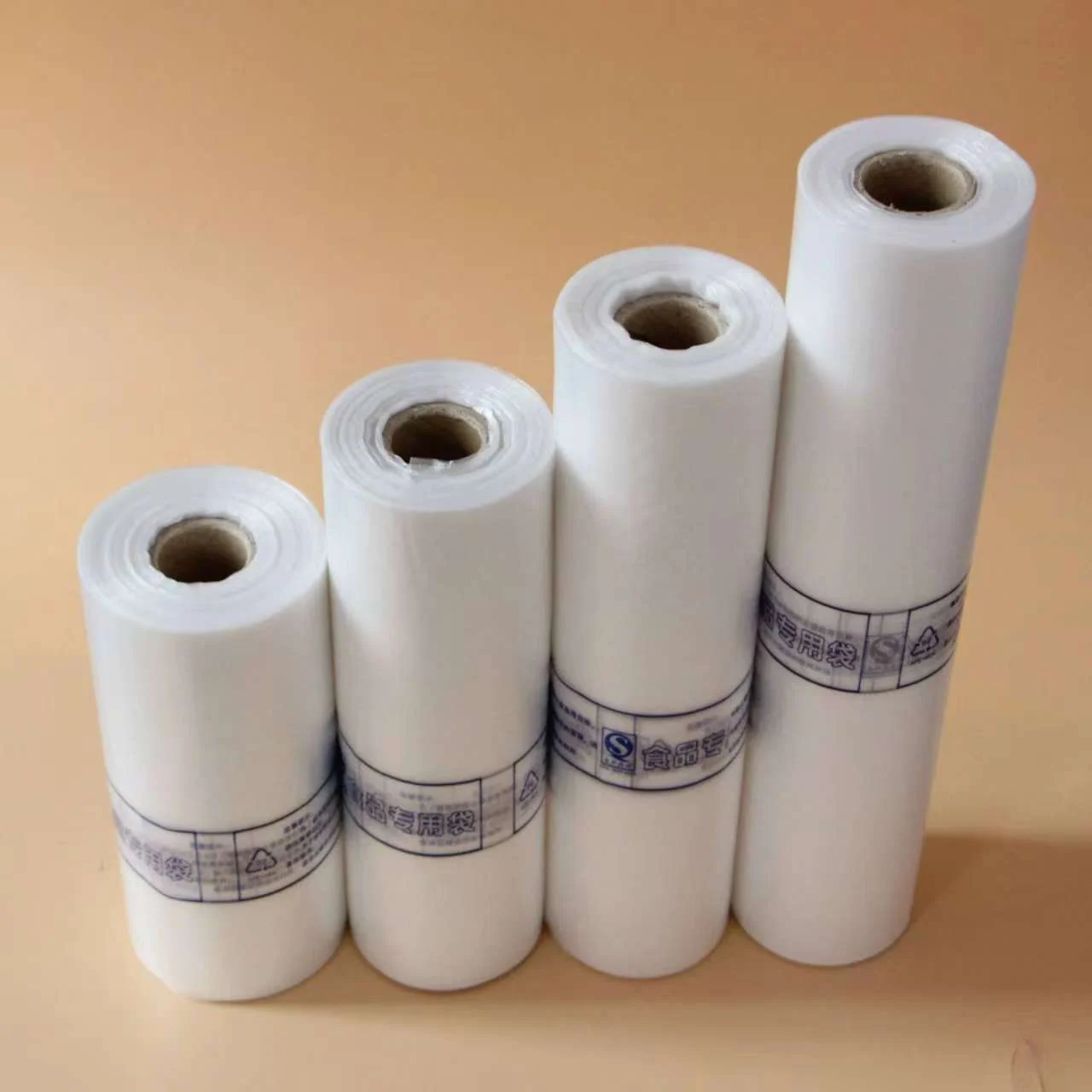

This is a single line high speed flat roll bag making machine . It can produce flat bag rolls with paper tube or without. The computerized length setting, touchscreen operation make it easy to use. EPC devices ensure a smooth rewinding.

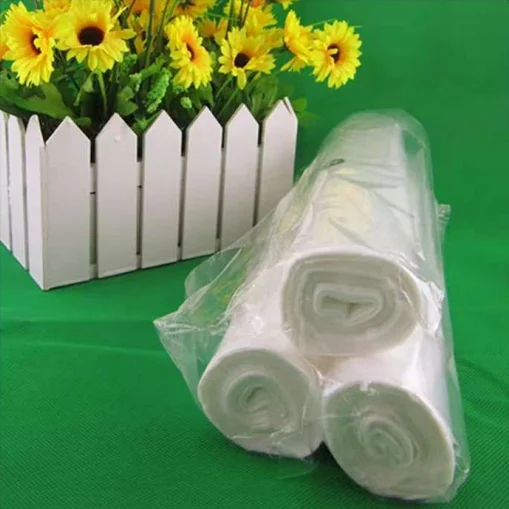

Coreless Bag Roll
Common Model and Parameters
| Model | XYLJ-500 | XYLJ-600 | XYLJ-700 |
| Bag Type | Flag Bag In Rolls With or With Out Paper or Plastic Tube | ||
| Bag Width Range | 80-400mm | 80-500mm | 80-600mm |
| Bag Length Range | 200-800mm | ||
| Max.Unwinding Diameter | 900mm | ||
| Max. Winding Diameter | 180mm | ||
| Film Thickness Range | 5-25 Micron ( Per Layer, total 4 or 8 Layers) | ||
| Speed | 80-200Pieces / min | ||
| Unwinding Device | Single | ||
| Rewinding Device | Single | ||
| Roll Change | Manually | ||
| Servo Motor | 1.5Kw | 1.8 Kw | 2.0Kw |
| Main Motor | 1.5Kw | 1.5Kw | 2.2Kw |
| Photo-cell | 1 | 1 | 1 |
| EPC ( Web Guide) | 1 | 1 | 1 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Air Supply | 7Kg/cm2, 700Ni/min | ||
| Total Power | 5Kw | 7Kw | 9Kw |
| Installation Size | 4.5 X 1.1 X 1.5 M | 4.5 X 1.2 X 1.5M | 4.5 X 1.3X 1.5 M |
| Fold Up Device | Optional | ||
