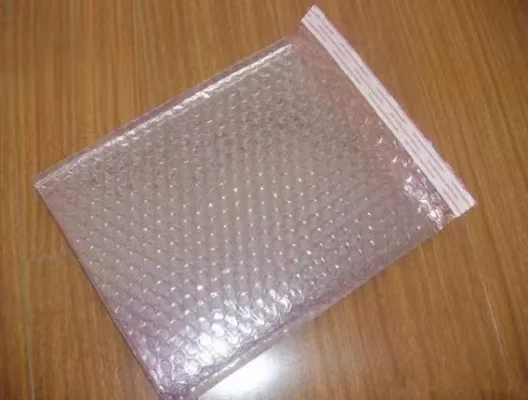

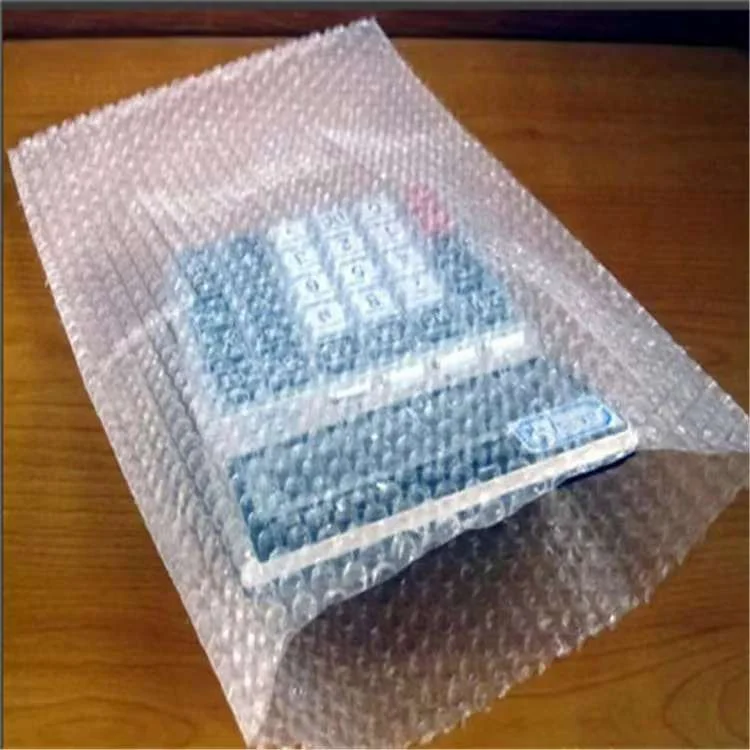

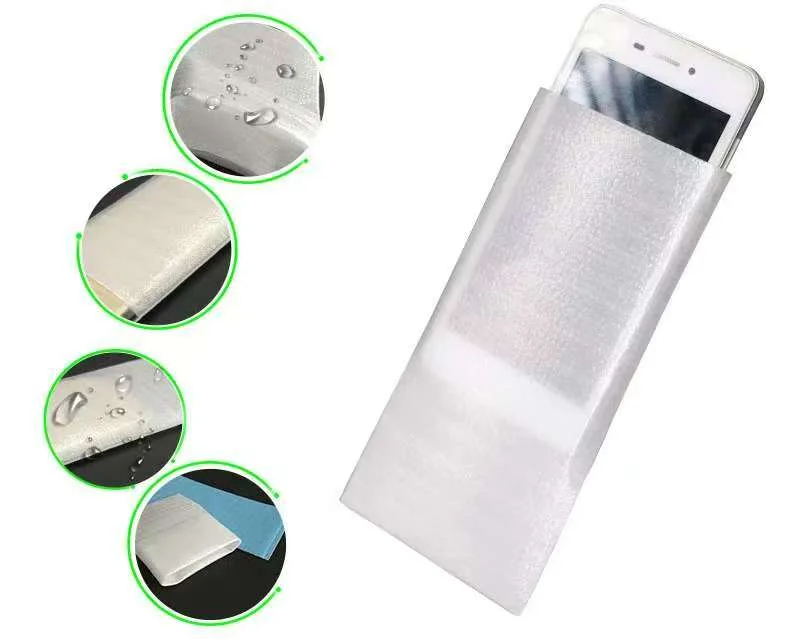

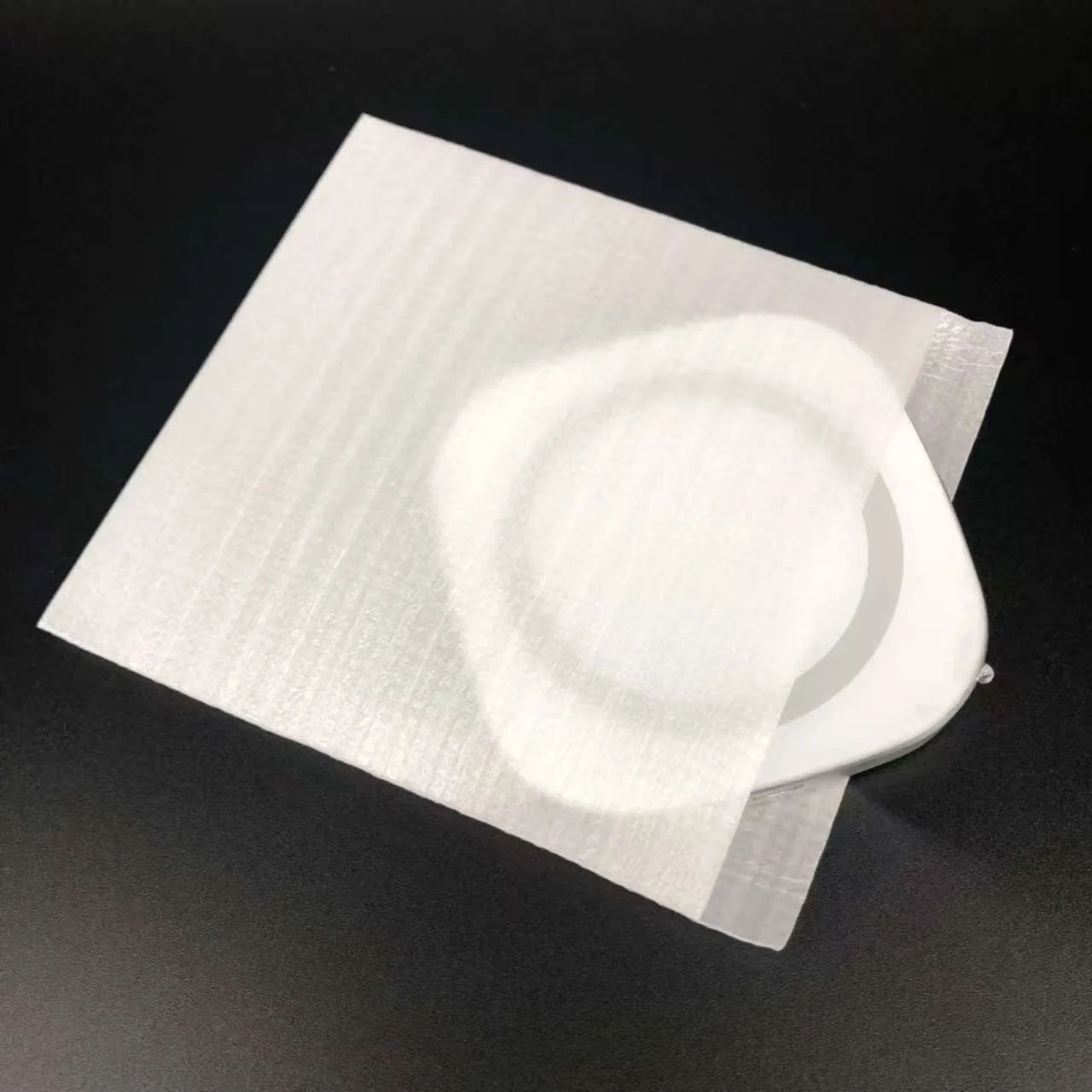

This is a multi-functional fully automatic air bubble film or EPE foam bag making machine. These bags are usually used for waterproof and shockproof/anti-friction packaging of hardware, handicrafts, lighting fixtures and electronic products. It is controlled by a computer, with automatic length setting, automatic counting, and automatic stacking functions. It can be equipped with a double folding-up device and online glue spraying function to meet different usage scenarios.
Common Model and Parameters 1
| Model | XYQB-800 | XYQB-1000 | XYQB-1200 |
| Bag Width Range | 100-700mm | 100-900mm | 100-1100mm |
| Bag Length Range | 100-1000mm | ||
| Film Thickness Range | Bubble Film 2-6mm , Foam 1-3mm | ||
| Speed | 20-180 Pieces / min , or 20-180 Pieces / min *2 lines | ||
| Fold Up Device | Standard one. Two for Option | ||
| Online Glue Tape System | Option | ||
| Web Guide System | Option | ||
| Automatic Bag Collect Device | |||
| Servo Motor | 1.5Kw | 1.8 Kw | 2.0Kw |
| Main Motor | 1.5Kw | 1.5Kw | 2.2Kw |
| Photo-cell | 1 | 1 | 1 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Air Supply | 7Kg/cm2, 700Ni/min | ||
| Total Power | 7Kw | 9Kw | 10Kw |
| Installation Size | 4.5X 2.8 X 1.75 M | 4.5 X 3.0 X 1.95 M | 4.5 X 3.5X 2.0 M |
