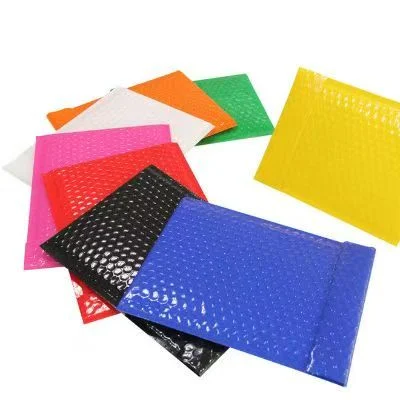

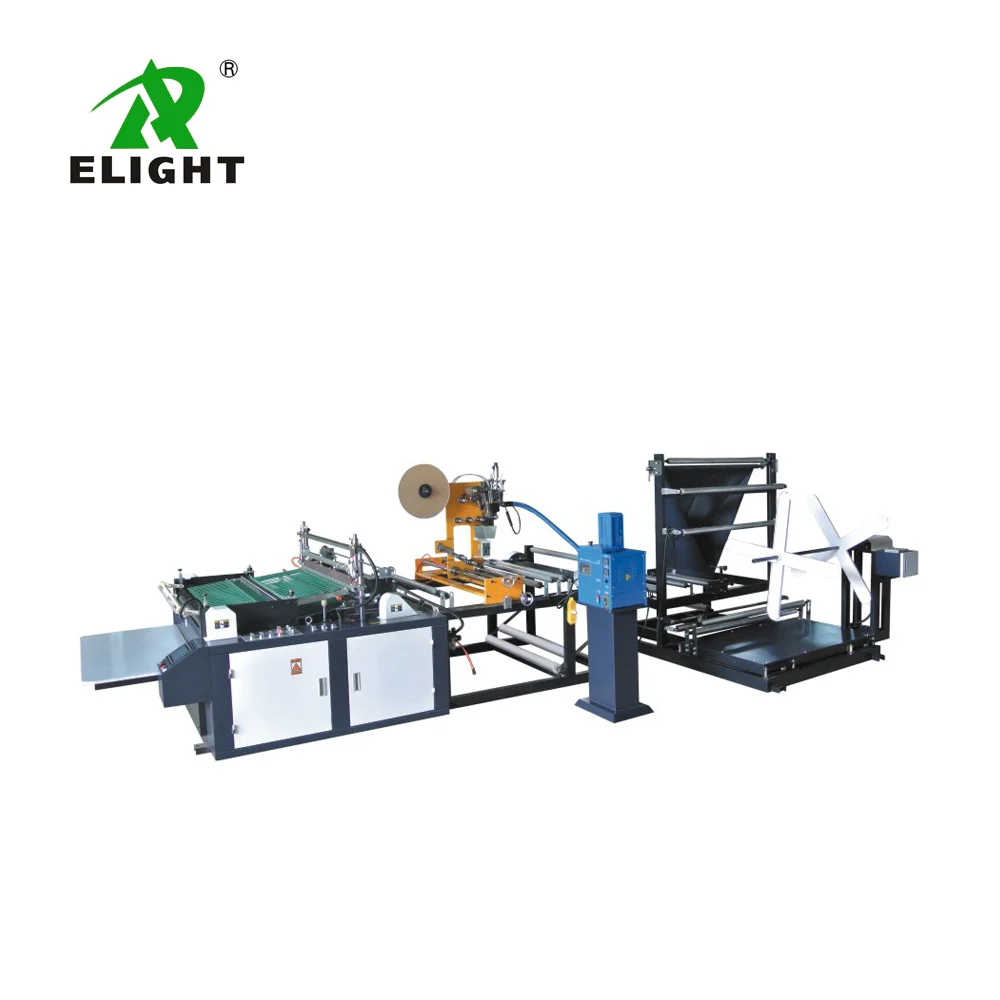

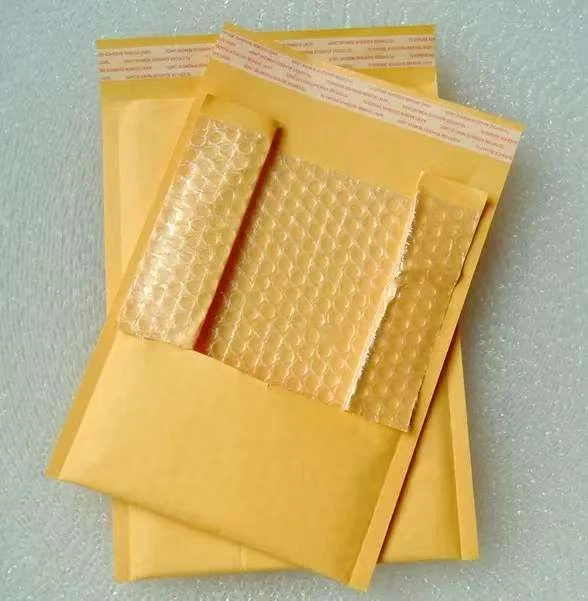

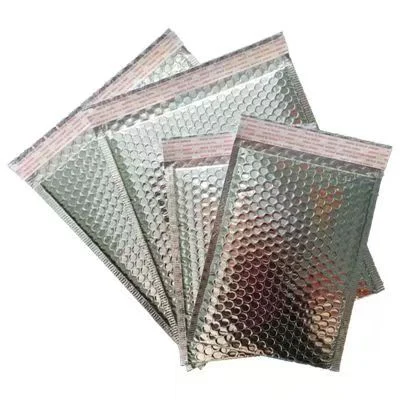

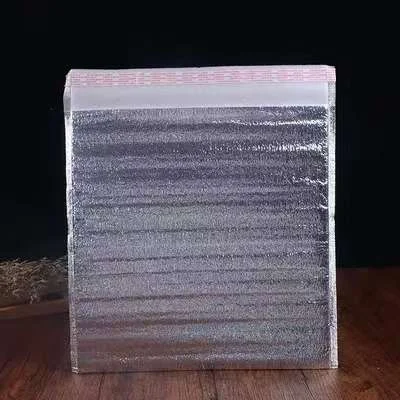

This is a fully automatic composite bubble bag making machine. It mainly produces multi-layer composite bubble film bags, such as kraft paper bubble bags, metallic film bubble bags, aluminum-coated film bubble bags, and laminated pearl cotton bags. These bags are used for e-commerce logistics (courier bags) or ordinary waterproof/ shockproof/ insulation packaging. Fully automatic computer operation, dual-line design, online compounding and glue application functions, make it simple, efficient and highly versatile.
Common Model and Parameters 1
| Model | XYXFD-800 | XYXFD-1000 |
| Bag Width Range | 100-650mm | 100-800mm |
| Bag Length Range | 100-1000mm | |
| Bubble Film Thickness Range | 25-150 grams,PE Coated Kraft paper 50-80 grams, PE Coated foil, Pearlized film. | |
| Speed | 20-160 Pieces / min , or 20-160Pieces / min *2 lines | |
| Fold Up Device | C fold | |
| Online Glue Tape System | Option | |
| Online Lamination System | Option | |
| Automatic Bag Collect Device | Include | |
| Hot Sealing Blade | 4 Groups | |
| Puncture Blade | 1 Set | |
| Cold Forming Blade | 1 Set | |
| Length Control Zone | 2 Zones | |
| Cutting Blade Adjust | Automatic | |
| Servo Motor | 5 Sets | 5 Sets |
| Main Motor | 5.5Kw | 7.5Kw |
| Photo-cell | 1 | 1 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | |
| Air Supply | 7Kg/cm2, 700Ni/min | |
| Total Power | 22Kw | 25Kw |
| Installation Size | 21 X 2.6 X 2.7 M | 22 X 3.0 X 2.9 M |
