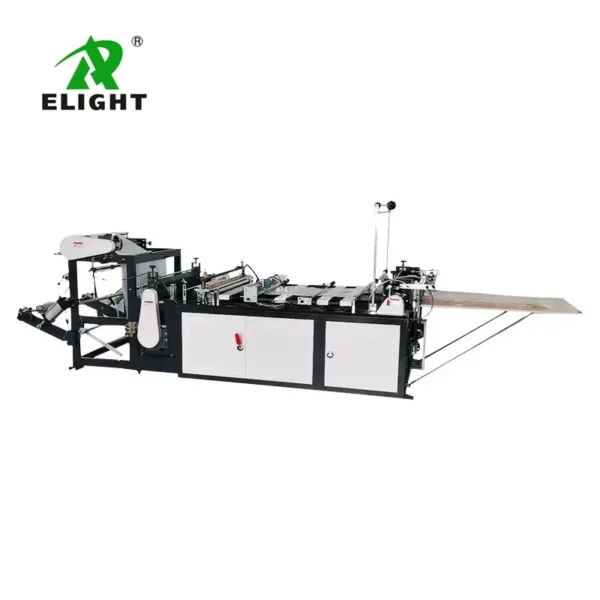

This is a multi-functional bag making machine specially designed for thick plastic film or easy stretch biodegradable film. Two sets of feeding servo motors can prevent stretching at the sealing position. The sealing blade is controlled by servo motor, and the heat sealing time can be free set according to the thickness and characteristics of the material. The sealing blade base also has a heating function to ensure the best sealing effect.
Common Model and Parameters 1
| Model | GFQ-600 | GFQ-800 | GFQ-1000 |
| Bag Width Range | 80-500mm | 80-700mm | 80-900mm |
| Bag Length Range | 100-2000mm ( Flat Bag)
300-680 ( T-shirt Bag With Automatic Handle Puncher ) 100-2000mm ( T-shirt Bag With Manual Handle Puncher ) |
||
| Film Thickness Range | 10-150 Micron | ||
| Speed | 40-120 Pieces / min * | ||
| D-Shape Handle Cutting | Automatic | ||
| W/U Shape Handle Cutting | Semi Automatic | ||
| Round Hole Puncher | Optional | ||
| Servo Motor | 1.5Kw * 2 or 3 | 1.8 Kw * 2 or 3 | 2.0Kw * 2 or 3 |
| Main Motor | 1.5Kw | 1.5Kw | 2.2Kw |
| Photo-cell | 1 | 1 | 1 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Air Supply | 7Kg/cm2, 700Ni/min | ||
| Total Power | 7Kw | 9Kw | 1Kw |
| Installation Size | 4.5X 1.2 X 1.7 M | 4.5 X 1.4 X 1.7 M | 4.5 X 1.6X 1.7 M |
