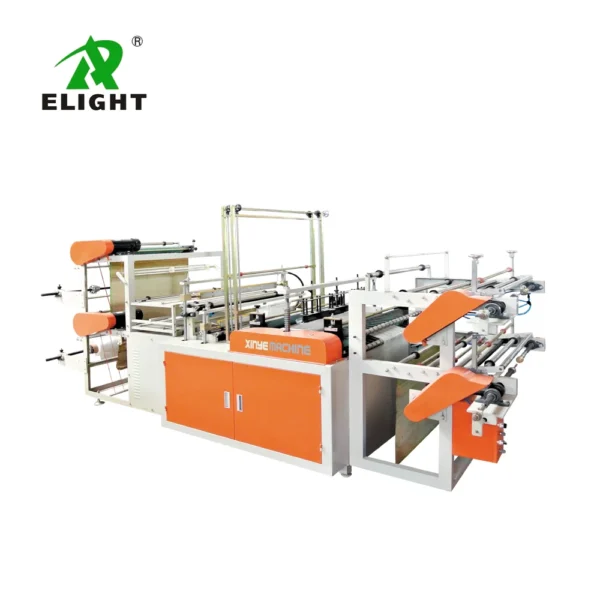

This is an economical and multi-functional roll bag making machine. It can produce roll flat bags and T shit bags with paper core or coreless. With the upper and lower two-layer heat sealing and perforating design, it can process two bags simultaneously (non-printed bags). Because of its low price and multi-functionality, it is the favorite of entrepreneurs.
Common Model and Parameters
| Model | DZB-600 | DZB-700 | DZB-800 |
| Bag Type | With Paper Tube Or Coreless Flat Bag or W/U Cut Bag In Rolls | ||
| Bag Width Range | 80-500mm | 80-600mm | 80-700mm |
| Bag Length Range | 200-1200mm ( Flat Bag)
200-680 ( T-shirt Bag ) |
||
| Film Thickness Range | 5-50 Micron | ||
| Speed | 40-120 Pieces / min * 2 lines ( Blank Bag )
40-120 Pieces / min * 1 lines ( Printed Bag ) |
||
| Unwinding Device | Double | ||
| Rewinding Device | Double | ||
| Roll Change | Manually | ||
| W/U Shape Cutting Mould | Free 1 Piece ( Customize for Multi Sizes ) | ||
| Servo Motor | 1.5Kw | 1.8 Kw | 2.0Kw |
| Main Motor | 1.5Kw | 1.5Kw | 2.2Kw |
| Photo-cell | 1 | 1 | 1 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Air Supply | 7Kg/cm2, 700Ni/min | ||
| Total Power | 5Kw | 7Kw | 8Kw |
| Installation Size | 3.5X 1.2 X 1.7 M | 3.5 X 1.4 X 1.7 M | 3.5 X 1.6X 1.7 M |
| Note | Other Large Sizes 1000-2000mm Models Can Be Customized. | ||
