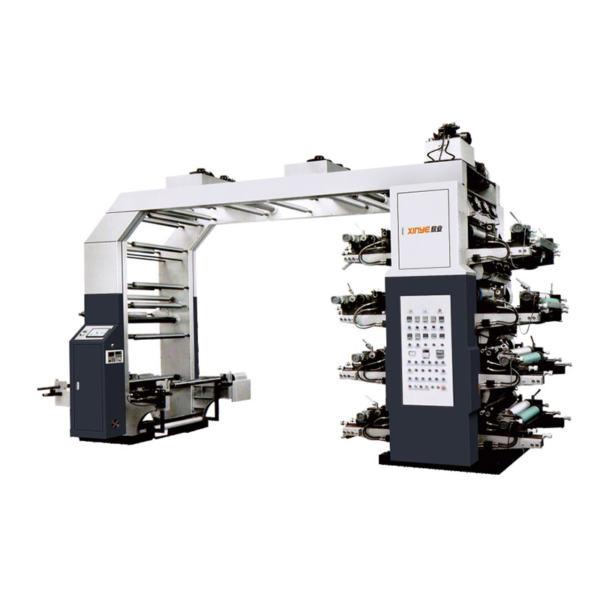

Stack Type Eight Colors High Speed Flexible Printing Machine

Categories:

Product Description

MAIN TECHNICAL VARIABLES

Model YTB-8600 YTB-8800 YTB-81000 YTB-4600 YTB-4800 YTB-41000
Max. Width of Printing Material 600mm 800mm 1000mm 600mm 800mm 1000mm
Max. Printing Width 560mm 760mm 960mm 560mm 760mm 960mm
Suitable Material Paper, film, no-woven fabric, foil
Printing Color 8色/8colors 8色/8colors 8色/8colors 4色/4colors 4色/4colors 4色/4colors
Printing Speed 10~100m/min 10~100m/min 10~100m/min 10~100m/min 10~100m/min 10~100m/min
Thickness of Plate 2.38mm 2.38mm 2.38mm 2.38mm 2.38mm 2.38mm
Weight of Machine 7000kg 8500kg 9000kg 4500kg 5000kg 5500kg
Overall Dimension(L×W×H) 5.3×1.9×3.0m 5.3×2.1×3.0m 5.3×2.3×3.0m 5.3×1.9×2.5m 5.3×2.1×2.5m 5.3×2.3×2.5m

Contact Our Experts

Trust your plastic packaging equipment to the industry's leading manufacturer

Our equipment utilizes high quality materials, advanced technology and strict quality control measures.
And we provide comprehensive support and assistance to our customers, not simply selling products, but also providing cutting-edge technology and services.

Get In Touch

Get customized solutions from professional bubble bag making machine manufacturers



Related Products

The machine is equipped with latest lmproved gear box,360 non-stopping registration device; pneumatic doctor blade for transverse reciprocating motion; Closed type oven, automatic constant temperature system; Side and up double drying oven system; Unwinding and feeding equipped with auto-tension controller and magnetic powder brack; Rewinding and output adopt magnetic powder clutch to control the tension; Turret type unwinding and rewinding mechanism, receiving and replacing material without stopping; Inflatable air shaft for unwinding/rewinding material loading; Printing linear speed and meter indication; Pneumatic printing impress roller and traction lmpress roller; Pneumatic nip roller for in unwinding and rewinding; Main motor:electromagnetic speed regulation motor.

Brand comes from quality, and reputation comes from sincerity.

Xinye Machine with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang.We are an experienced manufacturer in polyethylene film,bubble film extrusion machines, and related bag making machines field since 1995
