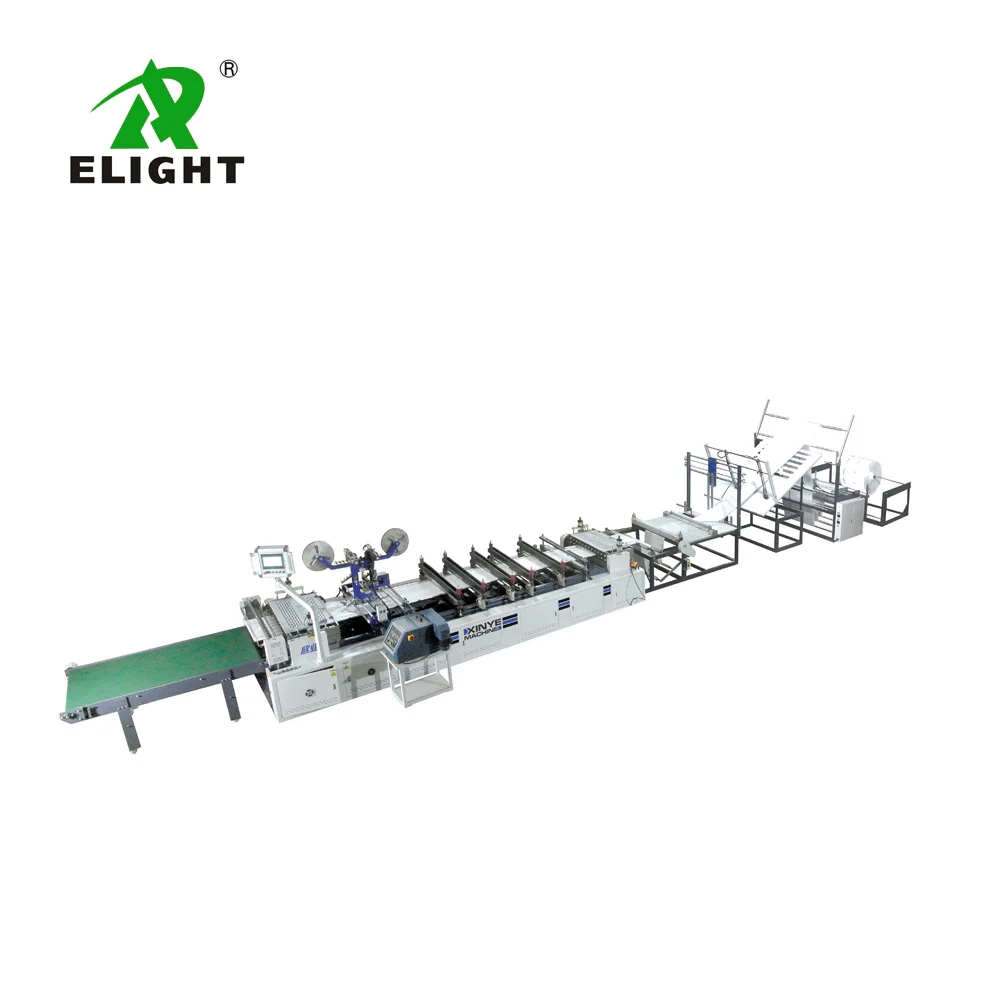

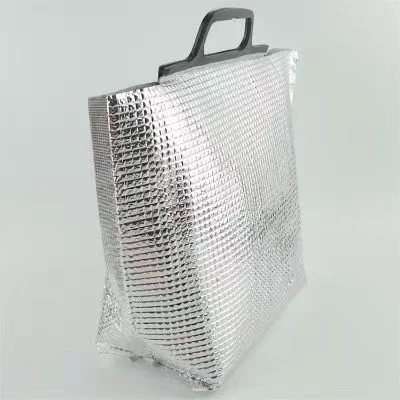

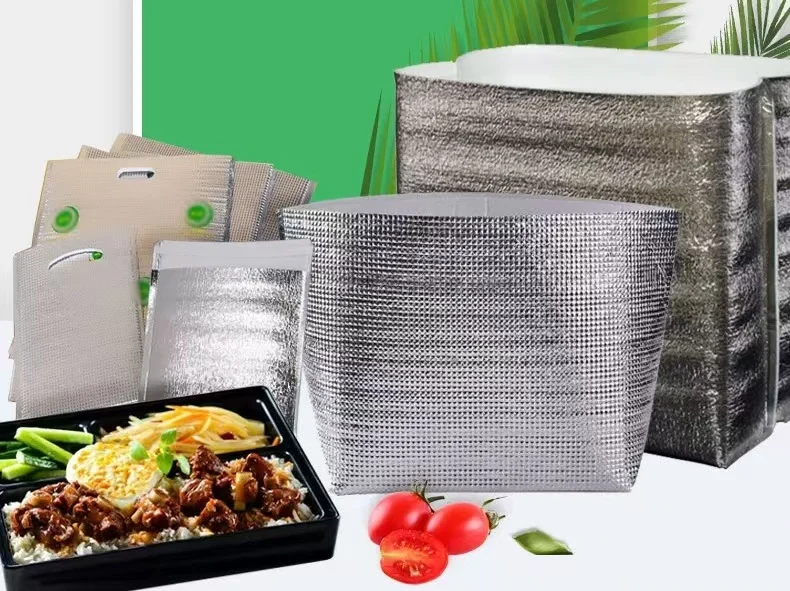

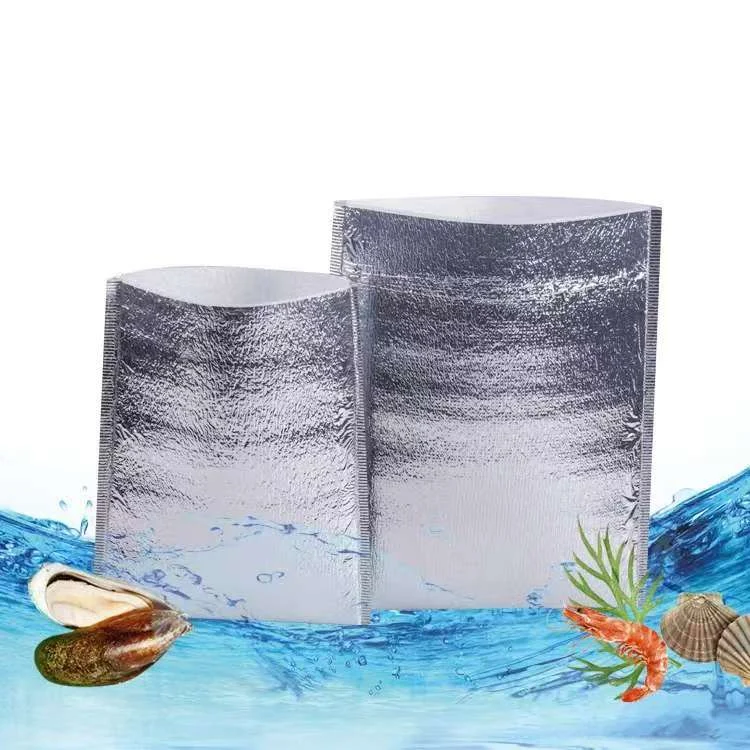

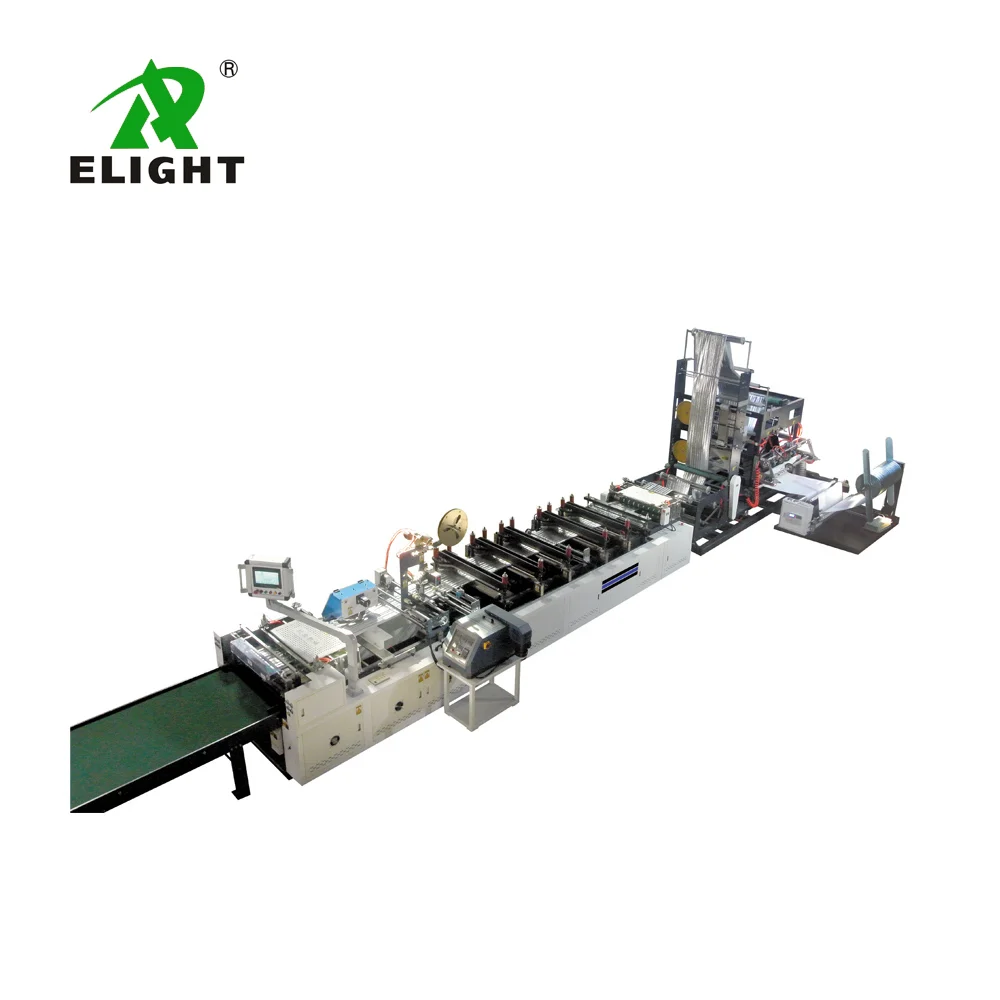

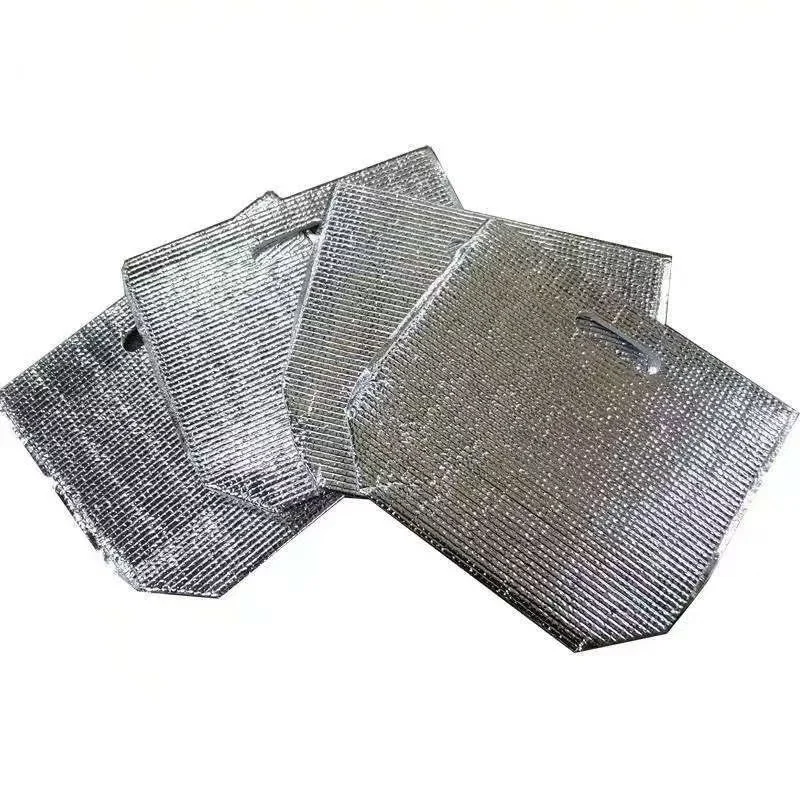

This bag-making machine is mainly used for producing three-dimensional or flat insulated bags or shock-proof packaging bags made of composite bubble film or EPE foam. It is fully computer-controlled, with multiple heat sealing processes, cooling and shaping, and the bag openings are firm and attractive. The online glue tape function or the D shape handle puncher are as option. These bags are mainly used for insulation packaging of food (takeout), seafood, and frozen food. They can also be used for ordinary packaging.
Common Model and Parameters 1
| Model | XYLTD-800 | XYLTD-1000 |
| Bag Width Range | 100-650mm | 100-800mm |
| Bag Length Range | 100-1000mm | |
| Film Thickness Range | 25-150 grams,PE Coated Kraft paper 50-80 grams, Pearlized film, Foil Foam | |
| Speed | 20-160 Pieces / min | |
| Fold Up Device | V fold | |
| Online Glue Tape System | Option | |
| Online Lamination System | Option | |
| Automatic Bag Collect Device | Include | |
| Hot Sealing Blade | 4 Groups ( Y shape ) | |
| Puncture Blade | 1 Set | |
| Cold Forming Blade | 1 Set | |
| Length Control Zone | 2 Zones | |
| Triangle Puncher | 1 Set (Servo Drive ) | |
| Cutting Blade Adjust | Automatic | |
| Servo Motor | 5 Sets | 5 Sets |
| Main Motor | 5.5Kw | 7.5Kw |
| Photo-cell | 1 | 1 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | |
| Air Supply | 7Kg/cm2, 700Ni/min | |
| Total Power | 20Kw | 21Kw |
| Installation Size | 18 X 2.8 X 2.7 M | 18 X 3.0 X 2.9 M |
