Three to Seven Layers Co-extruding Traction Rotating Film Blowing Machine Set

Three-to-Seven-layer co-extruding upper traction rotation blown film machine unit is designed and developed according to the market demands at the basis of domestic and foreign advanced technology. It is applied to packing with medium and high end film. The film is of well barrier property, retaining freshness, moisture-proof, frost prevention, oxygen proof and oil-proof. So it can be widely applied to the light-weight packing, such as fresh fruits,meat, pickles, fresh milk, drink, medicine, etc.

OPTIONAL EQUIPMENT:

1.AUTO AIR RING( ADJUST THE THICKNESS OF FILM AUTOMATICALLY)
2.IBC FILM BUBBLE INNER COOLING SYSTEM
3.AUTO THICKNESS MEASURE GAUGE
4.COMPUTER CONTROL SYSTEM

~

Product Description

Product Usage:

Three-to-Seven-layer co-extruding upper traction rotation blown film machine unit is designed and developed according to the market demands at the basis of domestic and foreign advanced technology. It is applied to packing with medium and high end film. The film is of well barrier property, retaining freshness, moisture-proof, frost prevention, oxygen proof and oil-proof. So it can be widely applied to the light-weight packing, such as fresh fruits,
meat, pickles, fresh milk, drink, medicine, etc.

Procuct Characteristic:

Three to seven layers co-extruding die head adopts the internationally advanced superposed die heads, of which each layer can heat and receive thermal insulation medium independently and insulate the heat effectively, which is good for blowing and making plastic film with different temperature. The die head is of advanced construction to ensure the steady fluid and thickness of film.

The traction system adopts±360°swing rotation in horizontal direction to meet the requirements for high precision and high-speed printing. The cooling system in IBC is internationally advanced technology today, The system adopts four ultrasonic wave probes to count the tested information, and at the same time, to guarantee the size of the film bubble steadily while changing hot air in the film bubble through the control and regulation of input air. It can increase the production output as well as its transparency and added value. Computer control system.It is equipped with fully automatic winding device with winding, unwinding, cutting, and unloading functions. The EPC system makes winding tidy and trim, improving work efficiency, lowing down labor intensity, reducing scrap material while changing winding roller. All systems are central controlled by computer.

OPTIONAL EQUIPMENT:

1.AUTO AIR RING( ADJUST THE THICKNESS OF FILM AUTOMATICALLY)
2.IBC FILM BUBBLE INNER COOLING SYSTEM
3.AUTO THICKNESS MEASURE GAUGE
4.COMPUTER CONTROL SYSTEM

MAIN TECHNICAL VARIABLES

Model F3B-TR-1300 F3B-TR-1600 F3B-TR-1800 F3B-TR-2200
Suitablematerial LDPE LLDPE HDPE LDPE LLDPE HDPE LDPE LLDPE HDPE LDPE LLDPE HDPE
Layfat width of film 1200mm 1500mm 1700mm 2000mm
Thickness of Film 0.02-0.20mm 0.02-0.20mm 0.02-0.20mm 0.02-0.20mm
Max. Extrusion Output 160kg/h 200kg/h 240kg/h 340kg/h
Screw Diameter Ф45/Ф55/Ф45mm Ф50/Ф60/Ф50mm Ф55/Ф65/Ф55mm Ф70/Ф85/Ф70mm
Screw Ratio L/D30:1 L/D30:1 L/D30:1 L/D30:1
Screw Speed 10-100r/min 10-100r/min 10-100r/min 10-100r/min
Power of Main Motor 15kw/22kw/15kw 18.5kw/30kw/18.5kw 22kw/37kw/22kw 37kw/55kw/37kw
Rir ring structure form Double air vent air ring
Rotary traction form ±360° Horizontal ±360°
Total Power 120kw 140kw 160kw 200kw
Weight of Machine 12T 14T 16T 20T
Overall Dimension(L×W×H) 9.5×5.0×9.0m 10×5.5×9.5m 10×6.0×10.5m 10.5×7.0×11m

Contact Our Experts

Trust your plastic packaging equipment to the industry's leading manufacturer

Our equipment utilizes high quality materials, advanced technology and strict quality control measures.
And we provide comprehensive support and assistance to our customers, not simply selling products, but also providing cutting-edge technology and services.

Get In Touch

Get customized solutions from professional bubble bag making machine manufacturers



Related Products

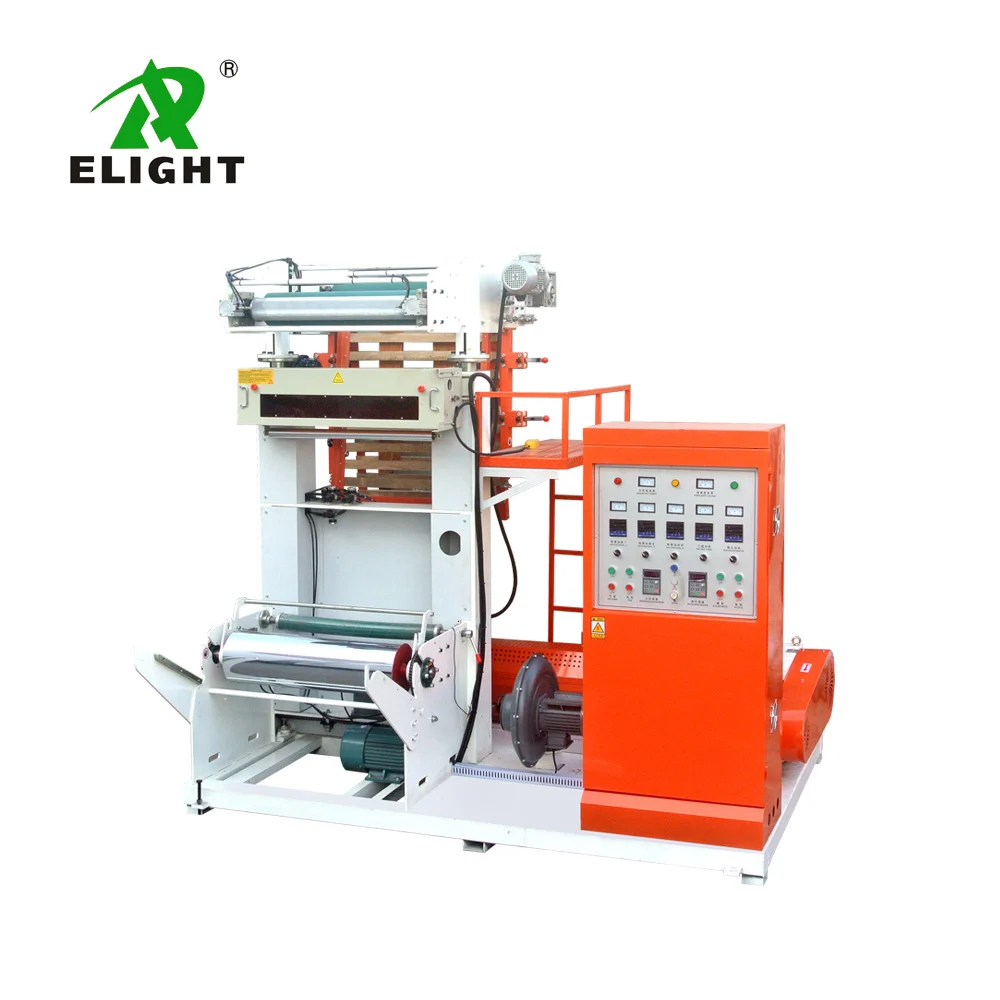

It is used for blowing polypropylene(PP) film which is widely used for packing food, garments, textile, daily necessities and industrial products etc.
