The machine is equipped with auto-counting, auto-folding, auto-unwinding and auto-alarming system. The bag making length is controlled by switch. It can produce bags in two lines with devices to collect and delivery end products in stack, which is convenient to operate.
| Model | XYQB-800 | XYQB-1000 | XYQB-1200 |
|---|---|---|---|
| Bag Width | 100-750mm | 100-950mm | 100-1150mm |
| Bag Length | 100-1000mm | 100-1000mm | 100-1000mm |
| Speed | 20-150pcs/min | 20-130pcs/min | 20-110pcs/min |
| Total Power | 8.5kw | 4kw | 10.5kw |
| Weight of Machine | 1300kg | 1500kg | 1700kg |
| Overall Dimension(L×W×H) | 4.4×2.8×1.75m | 4.5×3.0×1.95m | 4.5×3.5×2.0m |
Our equipment utilizes high quality materials, advanced technology and strict quality control measures.
And we provide comprehensive support and assistance to our customers, not simply selling products, but also providing cutting-edge technology and services.

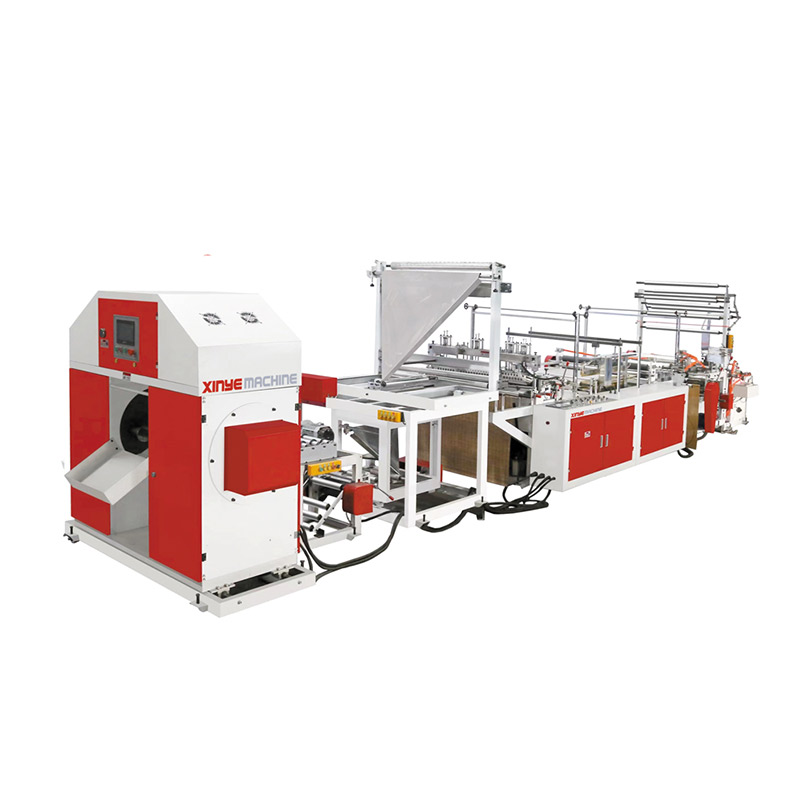

This machine is designed and developed by our company absorbing advanced foreign technology. It adopts the materials such as LDPE, HDPE roll film to produce threading garbage bags or folded-rolled bags. The machine adopts computer control, servo(step) motor to fix the length, photoelectric to track marks, auto counting, alarming , auto rectifying and auto temperature control etc. It is an ideal equipment to produce threading garbage bags.
The main raw materials are LDPE and LLDPE particles.
The machine can produce 2-5 layers of bubble film (Lamination layer+flat film+bubble+flat film+Lamination layer=5 layer), extruder is compsoed of main extruder andauxiliary extruder. total 3 screws.
Tow by One. None-stop material changing
Addable options: Online lamination function / Zipper lock function
Sample：
