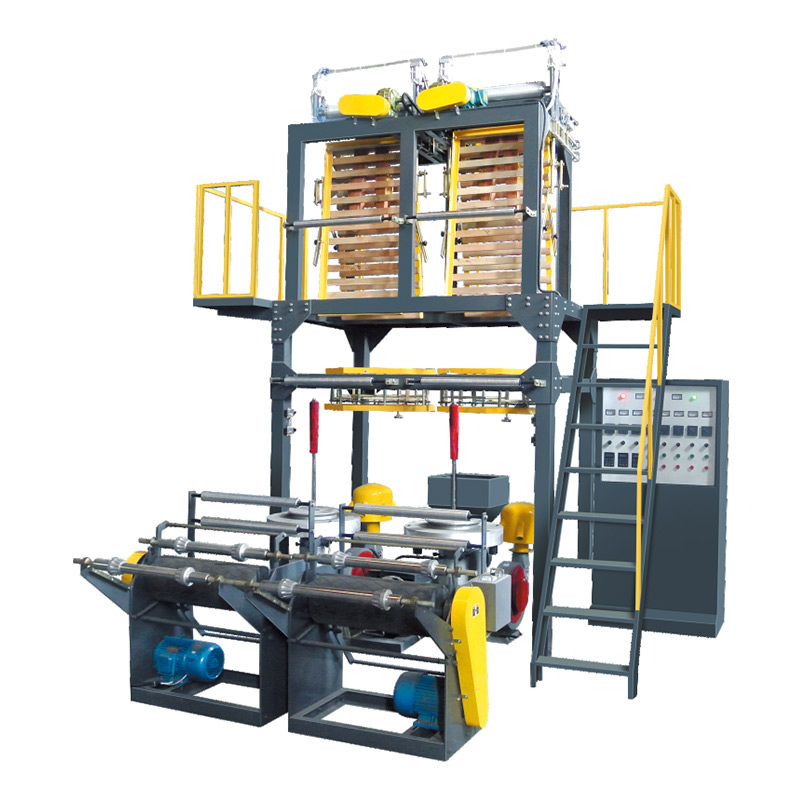

Double-head Film Blowing Machine Set

This machine is used for blowing low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic film to make various vest bags and flat bags which are widely used for packing in the foodstuff, garment industry and textile industry,etc.
The cylinder and screw of the extruder are made of high quality alloy steel through nitration and precision processing with the best hardness and corrosion resistance.Scientifically designed,this machine set has two heads for one extruder with advantages such as increasing production capacity,saving energy,labour and workshop area,etc.

OPTIONAL EQUIPMENT:

1.AUTO LOADER
2.CORONA TREATER
3.DIE ROTARY DEVICE
4.AIR COMPRESSOR
5.HIGH SPEED NET CHANGER

Product Description

Product Usage:

This machine is used for blowing low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic film to make various vest bags and flat bags which are widely used for packing in the foodstuff, garment industry and textile industry,etc.
The cylinder and screw of the extruder are made of high quality alloy steel through nitration and precision processing with the best hardness and corrosion resistance.Scientifically designed,this machine set has two heads for one extruder with advantages such as increasing production capacity,saving energy,labour and workshop area,etc.

OPTIONAL EQUIPMENT:

1.AUTO LOADER
2.CORONA TREATER
3.DIE ROTARY DEVICE
4.AIR COMPRESSOR
5.HIGH SPEED NET CHANGER

MAIN TECHNICAL VARIABLES

ModelSJ-55/FM-600SJ-60/FM-700SJ-65/FM-800
Screw Diameter55mm60mm65mm
Screw RatioL/D30:1L/D30:1L/D30:1
Screw Speed10-110r/min10-110r/min10-110r/min
Power of Main Motor22kw30kw37kw
Max.Extrusion Output46kg/h55kg/h70kg/h
Thickess of Film0.008-0.10mm0.008-0.10mm0.008-0.10mm
Max.Folding Width of Film550mm×2650mm×2750mm×2
Total Power40kw46kw52kw
Weight of Machine3000kg3500kg3800kg
Overall Dimension (L×W×H)4.8×2.2×4.5m5.0×2.4×4.7m5.2×2.6×5.0m
