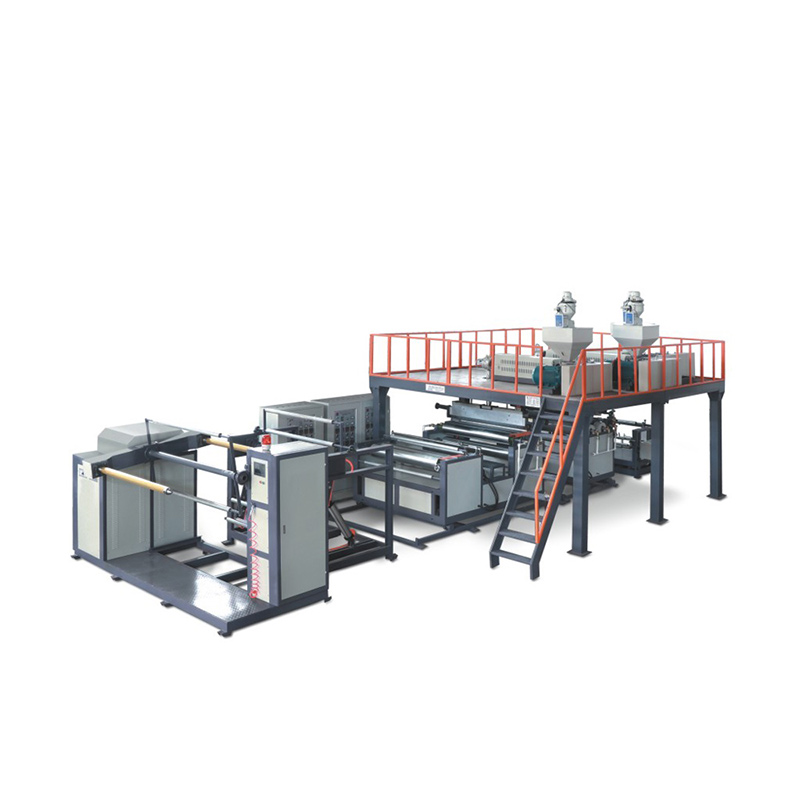

XYPEG-5LB 2-5 Layer Air Bubble Film Machine-3 Screws

The main raw materials are LDPE and LLDPE particles.

The machine can produce 2-5 layers of bubble film (Lamination layer+flat film+bubble+flat film+Lamination layer=5 layer), extruder is compsoed of main extruder andauxiliary extruder. total 3 screws.

Product Description

  • The main raw materials are LDPE and LLDPE particles.
  • The machine can produce 2-5 layers of bubble film (Lamination layer+flat film+bubble+flat film+Lamination layer=5 layer), extruder is compsoed of main extruder andauxiliary extruder. total 3 screws.
  • The main extruder is 2 screws design. It can lndependent control the bottom layer and the bubble layer, and has theadvantages of easy operation, high speed, high output and beautiful bubble, produce laminates Kraft paper, EPE foam,PET aluminum plating film, PE film and other products. By changing the bubble mold roller to change the diameter of bubble Φ6-30mm, products arewater proof, pressure proof, antistatic, insulaation and so on. widely used in furniture, hard ware, building materials, electronics, courier and other packaging industry.

MAIN TECHNICAL VARIABLES

ModelXYPEG-1200XYPEG-1600XYPEG-1800XYPEG-2000XYPEG-2500XYPEG-3000XYPEG-3500
Max.Width1200mm1600mm1800mm2000mm2500mm3000mm3500mm
Screw DiameterΦ65/55mm、Φ50mmΦ70/60mm、Φ55mmΦ75/60mm、Φ60mmΦ80/65mm、Φ65mmΦ85/70mm、Φ70mmΦ95/80mm、Φ75mmΦ110/90mm、Φ85mm
Screw L:D33:133:133:133:133:133:133:1
Extruder-Motor Power18.5/11kw、11kw22/15kw、15kw30/15kw、15kw30/18.5kw、18.5kw37/22kw、22kw45/30kw、30kw55/37kw、37kw
Take-up Motor Power1.5kw2.2kw2.2kw2.2kw3kw3kw3kw
Vacuum Pump1.1kw1.5kw1.5kw2kw2.2kw3kw3kw
Speed5-25m/min5-25m/min5-25m/min5-25m/min5-25m/min5-20m/min5-20m/min
Power100kw120kw135kw150kw168kw200kw248kw
