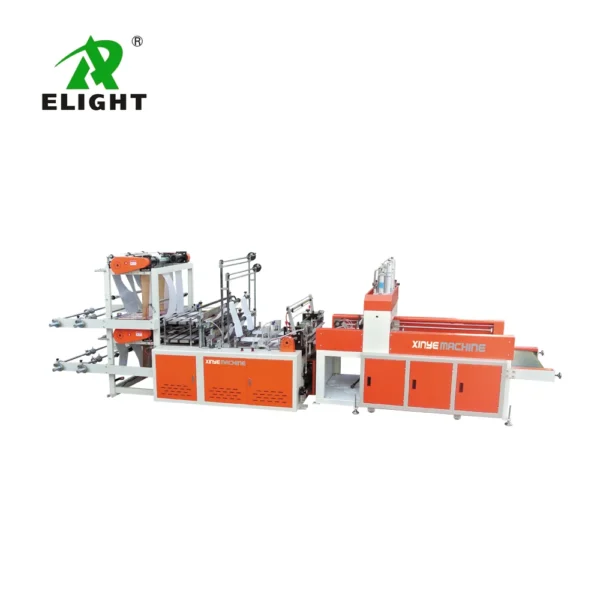

This is a multi-functional hot sealing- cold cutting bag making machine. It can be used to produce W/U type handle grocery bags (T-shirt bag), ordinary bottom sealing flat bags, and D-type handle shopping bags. With a four-line design, it can also have advantages when making small bags and can make 4 small bags at same time. Beside, it has a printing tracking function, allowing it to produce bags with printed patterns. This is the favorite machine for first-time entrepreneurs because it can cover various types of bags.
Common Model and Parameters 1
| Model | GFQ-600 | GFQ-800 | GFQ-1000 |
| Bag Width Range | 80-260mm (Four Lines)
80-550mm (Two Lines) |
180-360mm (Four Lines)
80-750mm (Two Lines) |
80-430mm (Four Lines)
80-950mm (Two Lines) |
| Bag Length Range | 100-2000mm ( Flat Bag)
300-680 ( T-shirt Bag With Automatic Handle Puncher ) 100-2000mm ( T-shirt Bag With Manual Handle Puncher ) |
||
| Film Thickness Range | 5-50 Micron | ||
| Speed | 40-120 Pieces / min * 4 lines ( Smaller Bag )
40-120 Pieces / min * 2 lines ( Bigger Bag ) 40-120 Pieces / min * 1 lines ( Printed Bag ) |
||
| D-Shape Handle Cutting | Automatic | ||
| W/U Shape Handle Cutting | Automatic | ||
| Servo Motor | 1.5Kw | 1.8 Kw | 2.0Kw |
| Main Motor | 1.5Kw | 1.5Kw | 2.2Kw |
| Photo-cell | 1 | 1 | 1 |
| Power Supply | 3Phase 4lines 220V/380V/415V/440V/480V, 50/60Hz ( Custom-made ) | ||
| Air Supply | 7Kg/cm2, 700Ni/min | ||
| Total Power | 8Kw | 10Kw | 12Kw |
| Installation Size | 6.2X 1.2 X 1.7 M | 6.2 X 1.4 X 1.7 M | 6.2 X 1.6X 1.7 M |
